Transitioning from rigid bottles to flexible packaging represents a major operational shift. You must understand more than just the new packaging material. You need to know exactly how these flexible structures interact on high-speed automated production lines. Making this switch blindly often leads to jammed machinery. You might experience frustrating micro-leaks. You could suffer from poor overall seal integrity. These issues matter because a poorly planned transition destroys your return on investment.
You need a clear view of both the physical packaging and the advanced filling equipment. We will deconstruct the exact mechanical and operational workflow of a spout pouch. From complex film lamination logic to precision high-speed automated filling, you will learn how to evaluate its true viability for your facility. Procurement managers, packaging engineers, and operations directors will discover actionable steps for safely scaling production.
Engineering Reality: Spout pouches rely on a 3-layer laminate structure and specific spout-to-nozzle ratios to ensure product viability and zero leakage.
Production Efficiency: Modern automated filling equipment runs a highly controlled 6-to-7 step cycle (including nitrogen flushing and clean-in-place capping) capable of hitting 50–100 pouches per minute.
TCO & ROI Drivers: Shifting to spouted stand up pouches reduces inbound freight by allowing flat shipping and increases end-user product evacuation to 99% (compared to 85-90% in rigid containers).
Risk Mitigation: Success depends on strict viscosity matching, precise headspace calculation (3-8%), and selecting the correct stainless-steel grades (SUS304 vs. SUS316) for your machinery.
High-quality Spouted stand up pouches require robust structural engineering. They are not simple plastic bags. They function as highly technical barrier systems. You must deconstruct the material science to understand package reliability.
Manufacturers engineer these packages using precise multi-layer lamination. Each layer serves a specific, critical function.
Inner Contact Layer: Facilities use food-grade LLDPE (Linear Low-Density Polyethylene). This material provides superior chemical resistance. It also guarantees reliable, leak-proof thermal sealing.
Middle Barrier Layer: You typically incorporate AL (Aluminum foil), PA (Nylon), or VMPET. These specific layers block oxygen infiltration. They prevent UV light degradation. They stop moisture transfer. This layer maximizes your product shelf life.
Outer Display Layer: Brands commonly use PET or Kraft paper here. These sturdy materials offer exceptional puncture resistance. They also support high-quality flexographic printability for brand aesthetics.

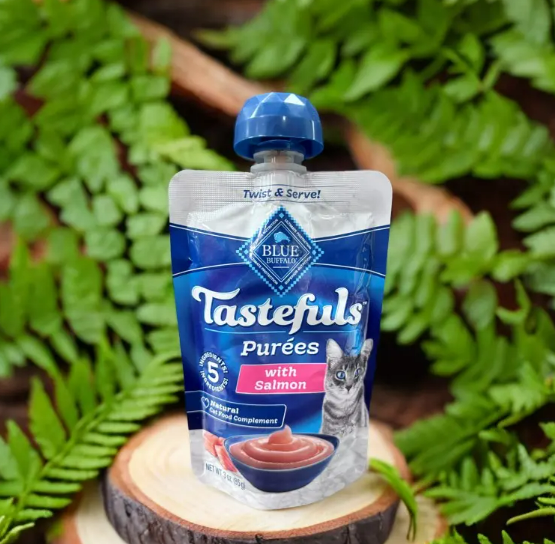

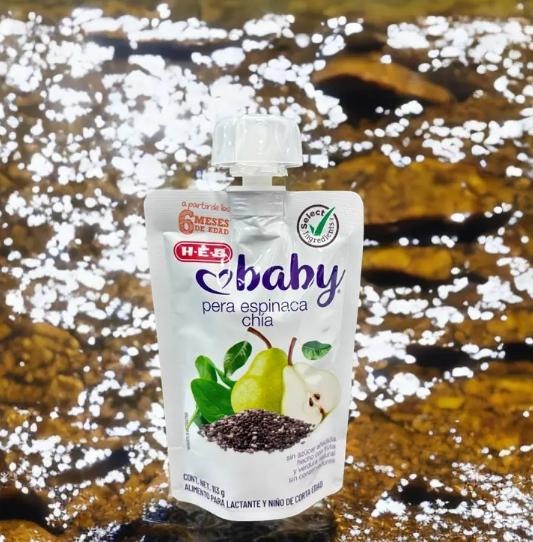

Where you place the rigid spout fundamentally changes the package. Top-center placement creates a familiar pouring experience for consumers. Corner placement allows for alternative industrial filling paths. It also improves end-user ergonomics during squeezing.
You must strictly follow the Viscosity-to-Diameter Rule. Your liquid thickness dictates the required opening size.
8-10mm: Ideal for cosmetic gels and thin lotions.
12-16mm: The industry standard for common liquids, juices, and sauces.
20-30mm: Absolutely necessary for particulate-heavy formulas like fruit purees or thick soups.
You cannot fill a flexible container entirely to the top. Engineering a 3-8% empty internal volume is mandatory. This headspace absorbs internal pressure changes. It prevents sudden thermal expansion bursts during high-temperature transit. Without this calculated gap, packages suffer extreme hydraulic shock upon impact. They will inevitably fail standard drop tests. Ultimately, maintaining this headspace ensures mandatory ISTA (International Safe Transit Association) compliance.
Understanding the industrial filling cycle reveals key operational realities. You must grasp these step-by-step mechanics to optimize production flow.
Facilities utilize two primary equipment architectures. Standard Spout Filling involves mating the machine nozzle directly to a pre-sealed spout. Top or Pouch Filling operates differently. The spout sits in the top corner. The top edge remains completely unsealed. The machine fills product through this wide open top. It permanently seals the top edge afterward.
Modern equipment executes a rapid, highly choreographed sequence. We break down the exact cycle below.
Loading & Registration: Empty pouches enter the active system. Automated rail feeding or robotic picking arms align them precisely.
Opening & Inflation: Mechanical grippers grab the outer edges. Localized air blasts expand the folded gusseted bottom. The pouch stands fully upright.
Nitrogen Flushing (Optional): Machines displace trapped oxygen using specialized gas. This crucial flushing prevents rapid oxidation. It actively inhibits dangerous microbial growth.
Precision Filling: Servo-driven nozzles dose the exact product volume. Piston systems push thick sauces. Pump systems manage thin liquids. Auger fillers drop dry powders. These mechanisms ensure strict ±1% weight accuracy.
Spout Cleaning & Capping: Machines rinse the delicate thread area. Clean threads ensure perfect seal integrity. A rotary or robotic arm then applies precise rotational torque to the cap.
Sealing: Top-filled units require a final mechanical closure. Machines use ultrasonic waves or thermal jaws. They apply exact heat and pressure to fuse the inner LLDPE layers.
Quality Control & Discharge: Inline sensors verify the final outcome. Automated weigh-stations check the mass. Cap-tightness sensors ensure secure closure. The machine applies regulatory batch coding before final discharge.
Selecting the right machinery architecture requires strict decision-stage frameworks. You must match your equipment perfectly to your specific production scale and factory environment.
Different production volumes demand distinct mechanical layouts. You can evaluate the core categories using this summary chart.
System Typology | Ideal Application | Standard Speed | Key Architectural Traits |
|---|---|---|---|
Semi-Automatic | R&D, pilot runs, custom highly viscous batches | 10–20 CPM | High flexibility. Requires manual loading. Small footprint. |
Rotary Systems | Medium to high volume factory environments | 50–100 CPM | Highly compact footprint. Continuous motion. High efficiency. |
Linear Systems | Maximum output scaling | 100+ CPM | Larger factory footprint. Easily expandable via multi-head nozzles. |
Two main technical factors dictate your capital expenditure.
Component Sourcing: Premium internal parts maximize long-term uptime. High-end PLCs (Programmable Logic Controllers) provide exact timing sequences. Advanced servo motors deliver reliable, repeatable nozzle motion. Cheap control components inevitably cause frequent micro-stoppages. These constant halts destroy operational efficiency.
Sanitary Standards: Standard machines utilize SUS304 stainless steel. This baseline works perfectly for many standard products. However, some items demand an immediate metallurgical upgrade. Acidic foods, high-salinity sauces, and pharmaceutical-grade products require SUS316 stainless steel. SUS316 fiercely resists chemical corrosion. It ensures total compliance with strict regulatory sanitation codes.
Shifting your production to spouted packaging requires hard business metrics. You need clear financial data to justify the transition.
Rigid bottles consume massive amounts of empty space during shipping. Logistics providers often calculate freight billing based on volume, not just true weight. Flat-packed empty pouches offer extreme source reduction. They allow you to shift billing metrics strictly to weight. This transition routinely cuts inbound freight costs by up to 80%. It similarly reduces your required warehousing footprint.
End-users despise wasting expensive product. Rigid bottles stubbornly trap residue inside. They usually yield a disappointing 85-90% evacuation rate. Flexible packages perform exponentially better. Users can effortlessly squeeze them completely empty. They achieve a 99% product evacuation rate. This dramatic reduction in product waste directly enhances consumer satisfaction and brand perception.
Sustainability heavily influences modern buyer behavior. Flexible formats use significantly less physical plastic per unit. This dramatically lower material usage translates directly to packaging cost savings. It actively reduces your exposure to emerging packaging taxes. It also brings your physical product into strict alignment with aggressive corporate sustainability mandates.
You build operational trust by understanding exactly what goes wrong on the factory floor. Highlighting common engineering pitfalls helps you specify equipment and materials correctly.
Procurement teams often select spout diameters based purely on visual aesthetics. They ignore the required fluid flow rate. This oversight causes severe machine jamming. It leads to incredibly poor, sluggish fill speeds. You must let your product thickness dictate the exact opening size. Forcing thick gels through narrow openings ruins production quotas.
Hot-fill processes subject packaging structures to extreme thermal stress. Retort sterilization does the exact same thing. Failing to specify barrier films for these high temperatures proves dangerous. It leads to rapid, disastrous delamination. The laminated layers literally separate. The physical seals burst under internal pressure. Always specify explicit high-temperature laminate structures for heated applications.
Thermal seals demand absolute cleanliness to function. You cannot allow flexographic inks into the designated seal area. Product drips during the filling stage also ruin internal seals. These microscopic contaminants instantly degrade thermal seal strength. They cause invisible micro-leaks. These tiny leaks invite oxygen ingress. They ultimately ruin your product while it sits on the retail shelf.
Summary: These specialized flexible containers represent a highly engineered system. They seamlessly combine advanced multi-layer barrier laminates with precision industrial automation.
Shortlisting Logic: Base your core transition strategy on three pillars. Use product viscosity to determine exact spout size. Evaluate production volume to choose between rotary and linear equipment. Analyze product acidity and regulatory needs to spec the correct film layers and steel grades.
Next-Step Action: Consult directly with a senior packaging engineer. Ask them to run an official ISTA drop test on a prototype package. Furthermore, request a comprehensive TCO comparison audit against your current rigid packaging line.
A: Yes. You can achieve this by swapping the actual filling attachment on a modular machine system. You would change out a pump filler designed for liquids and attach an auger filler designed for powders.
A: If the machine fills the product directly through the spout, it applies precise rotational torque to secure the cap. If the machine fills the product through the wide open top, thermal heat jaws or ultrasonic welders permanently fuse the laminate film together.
A: Yes. However, the multi-layer laminate structure and the rigid spout must be explicitly engineered for heat. Manufacturers usually mold high-temp spouts from durable HDPE or PP. These specific materials withstand high temperatures without suffering delamination or structural warping.
