Packaging failures in heavy-duty applications carry massive stakes. A single compromised seal in high-capacity packaging leads to catastrophic product loss, pallet contamination, and severe retailer chargebacks. When dealing with dense, heavy products, the structural integrity of the packaging is the only barrier between a successful delivery and a costly logistical failure. The structural complexity of quad seal bags—featuring four distinct corner seals plus top and bottom closures—creates multiple potential failure points. Manual or ad-hoc testing is entirely insufficient for verifying hermetic integrity under heavy loads. To mitigate these risks, facilities must implement a standardized, evidence-based testing protocol. Relying on visual inspections or basic hand-pull tests leaves operations vulnerable to micro-leaks and sudden ruptures during transit. This guide evaluates industry-standard destructive and non-destructive testing methodologies, equipment requirements, and compliance frameworks necessary to validate seal integrity rigorously.
Standardization is Non-Negotiable: Reliable testing requires adherence to established frameworks like ASTM F88 for peel strength and ASTM F2096 for leak detection.
Strength vs. Integrity: Seal strength testing (tensile/burst) measures the mechanical force required to separate the seal, while leak testing (vacuum decay/bubble emission) verifies the hermetic barrier. Both are required.
Weight Amplifies Risk: For high-capacity formats like 6–10 kg Flat Bottom Bags, dynamic drop testing and creep testing are critical to simulate real-world supply chain stresses.
Protocol Design Dictates ROI: Balancing destructive testing (which costs materials) with non-destructive testing (which requires higher upfront equipment investment) is the key to a scalable Quality Assurance (QA) program.

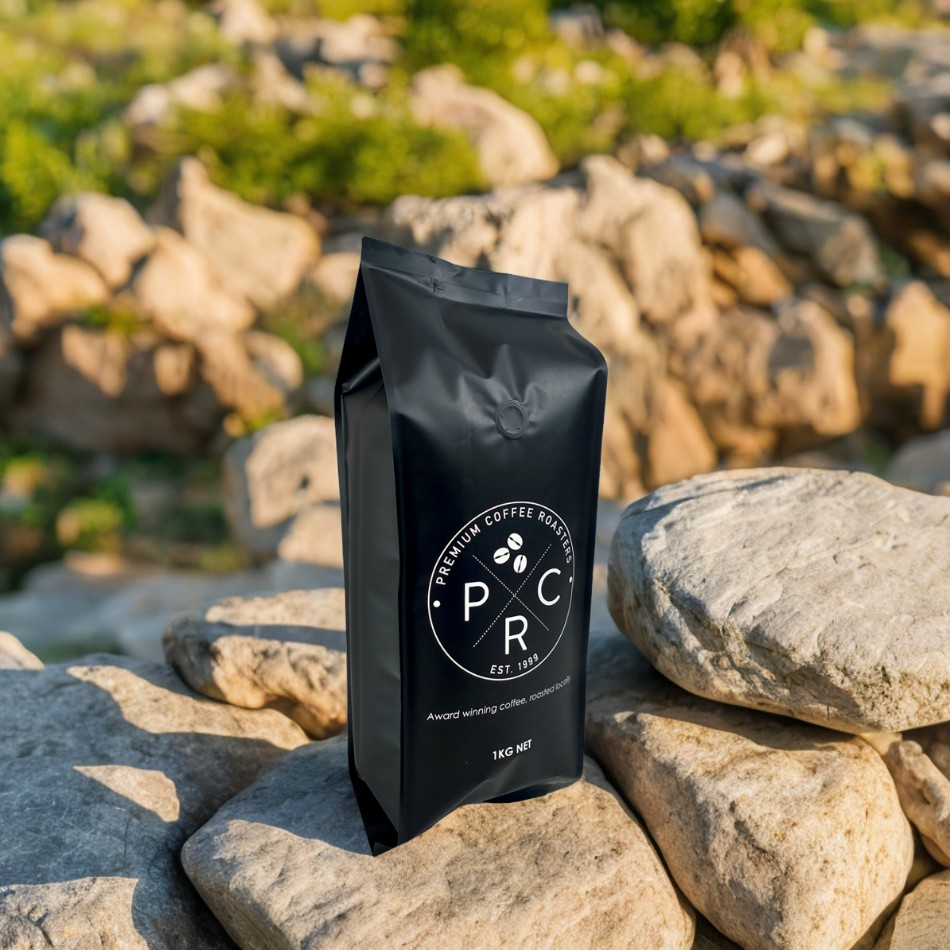

The anatomy of Quad Seal Bags is inherently complex. These formats rely on four vertical side seals, a bottom seal that often incorporates a folded gusset, and a top closure. This multi-seal architecture provides excellent structural stability and branding space, but it significantly multiplies the risk of seal failure. The most vulnerable location lies in the gusset transition zone. This is the specific area where two layers of flexible film transition abruptly into four layers.
This transition zone is the highest-risk area for capillary leaks, punctures, and incomplete heat sealing. Variations in sealing temperature, dwell time, and jaw pressure disproportionately affect these multi-layer intersections. If the sealing jaws do not apply adequate pressure to compress the four layers, micro-channels form, allowing oxygen and moisture to breach the package. Conversely, excessive heat or pressure can thin the polymer web, creating brittle zones susceptible to tearing under stress. Operators running the conversion lines must constantly monitor the thermal profile of the sealing bars to prevent these defects.
To properly troubleshoot gusset transition leaks on the production floor, operators should follow a strict diagnostic sequence:
Isolate the leaking bags and mark the exact location of the failure using a dye penetrant.
Measure the thickness of the seal at the failure point using a micrometer to check for polymer thinning.
Verify the surface temperature of the sealing jaws using a calibrated pyrometer, ensuring it matches the machine's setpoint.
Inspect the silicone backing pads on the sealing jaws for wear, as uneven pads cause inconsistent pressure across the transition zone.
Adjust the dwell time incrementally before increasing temperature to prevent scorching the outer film layer.
Analyzing the physics of load distribution in heavy-format packaging reveals why standard testing falls short. Formats like 6–10 kg Flat Bottom Bags shift the center of gravity downward. The flat bottom design creates a stable base, but it places sustained, outward hydrostatic pressure directly on the lower horizontal and vertical corner seals. The product weight constantly pushes against these lower boundaries, testing the limits of the polymer's tensile strength.
The success criteria for these heavy-duty bags extend far beyond static storage. They must withstand dynamic shock during palletization, forklift transport, and transit vibrations. A bag that holds 10 kilograms perfectly still on a shelf may rupture instantly when dropped onto a pallet or subjected to the compressive forces of being stacked at the bottom of a heavy load. Testing protocols must account for these dynamic forces to ensure real-world viability. Packaging engineers must simulate the exact drop heights and vibration frequencies the bags will experience in the specific distribution channel.
ASTM F88 is the principal test method for evaluating the seal strength of flexible barrier materials. This standardized approach provides quantifiable, repeatable data regarding the mechanical force required to separate a seal. The methodology involves cutting specific width strips directly from the sealed edges of the packaging. These strips are then clamped into a universal testing machine, commonly known as a tensile tester, which pulls the seal apart at a constant, controlled rate.
Operators must meticulously record specific evaluation metrics during this process. Peak force indicates the maximum stress the seal withstands before failure, while average force provides a broader view of seal consistency. Identifying the mode of failure is equally important. Testers must note whether the failure was an adhesive failure (the seal peeled apart cleanly) or a material tear/delamination (the film itself broke before the seal yielded). Understanding the failure mode tells the engineering team whether they have a sealing parameter issue or a raw material defect.
Automated tensile testing stands in stark contrast to the common, yet highly unreliable, practice of pulling seals apart by hand. Manual tests fail entirely to produce repeatable, quantitative peel strength data. Human force is inconsistent, making it impossible to establish a reliable baseline for quality assurance or compliance. Relying on hand pulls is a guaranteed way to let weak seals slip through the QA process.
Burst testing evaluates the overall strength of the package by inflating the bag until it ruptures. This determines the maximum internal pressure the seals can withstand before catastrophic failure. The process involves injecting air into the sealed package at a controlled rate while monitoring the internal pressure gauge. This test mimics the sudden pressure spikes bags experience when dropped or crushed.
There is a distinct difference between restrained and unrestrained burst testing. Restrained burst testing utilizes retaining plates to restrict the expansion of the bag's body, isolating the stress directly onto the perimeter seals. Unrestrained testing allows the entire package to expand, which tests both the seals and the elasticity of the film web. Burst testing is particularly valuable because it identifies the weakest point among all four corner seals simultaneously, providing an immediate indicator of the most vulnerable zone in the packaging structure.
Creep testing measures seal degradation over time under sustained stress. Instead of inflating the bag to the point of immediate rupture, creep testing applies a constant, sub-maximum internal pressure over a set duration. Operators monitor the package to see if the seals hold, slowly peel apart, or fail entirely during the test period.
This test is highly relevant for heavy products stacked on pallets. In a warehouse environment, the bottom layers of a pallet endure sustained compressive pressure for weeks or months. Creep testing simulates this continuous load, identifying slow seal separations that rapid burst tests might miss. It ensures the packaging maintains its structural integrity throughout its intended shelf life under realistic storage conditions.
To clarify the application of these methods, the following table outlines the primary differences and use cases for each mechanical strength test:
Testing Method | Primary Metric Measured | Standard Reference | Best Application |
|---|---|---|---|
Tensile (Peel) Testing | Peak force and failure mode | ASTM F88 | Routine QA checks on conversion lines for seal consistency. |
Burst Testing | Maximum internal pressure | ASTM F1140 | Identifying the weakest seal point across the entire bag structure. |
Creep Testing | Time to failure under load | ASTM F1140 | Simulating long-term pallet stacking and warehouse storage stress. |
Water submersion testing, governed by the ASTM F2096 standard, is a primary method for detecting gross leaks in flexible packaging. The process requires pressurizing the package internally, submerging it completely in a water tank, and visually inspecting the perimeter for a steady stream of bubbles. Industry-standard equipment, such as a C660M Leak and Seal Strength Detector, is often utilized to control the internal pressure accurately during submersion.
While effective for identifying obvious punctures or unsealed areas, this method has notable limitations. It is inherently a destructive test; puncturing the package to introduce air pressure and submerging it in water ruins both the product and the packaging. Furthermore, it relies heavily on operator observation. Micro-leaks may produce bubbles too small or infrequent for the naked eye to detect reliably in a fast-paced production environment. Operators must be trained to look for continuous streams of tiny bubbles, not just large, obvious ruptures.
Vacuum decay offers a highly sensitive, non-destructive alternative for hermetic seal validation. This method places the sealed bag inside a tightly fitted, specialized chamber. The system draws a vacuum within the chamber and carefully monitors for minute pressure changes. If air escapes from the package into the chamber, the pressure sensors detect the variation, indicating a leak.
The return on investment for vacuum decay systems is significant. While the initial equipment cost is higher than a simple water bath, it completely eliminates product waste associated with destructive testing. More importantly, it provides objective, quantifiable data independent of human observation, making it ideal for detecting micro-leaks in high-value or highly sensitive product lines. The machine provides a simple pass/fail result based on programmed parameters, removing human subjectivity from the QA process.
Dye penetration testing is specifically designed to identify capillary leaks that evade other testing methods. This protocol uses a low-surface-tension dye penetrant solution applied directly to the inside edge of the seal. Operators observe the seal over a specified time to see if the dye travels through the seal area.
This method is exceptionally useful for inspecting the complex gusset folds and transition zones. It highlights microscopic channel leaks that are invisible to the naked eye and often undetectable by low-pressure burst tests. By mapping the exact path of the leak, engineers can adjust sealing jaw pressure and temperature settings to eliminate the specific capillary channels forming in the transition zones. It is a highly diagnostic tool used primarily during machine setup and troubleshooting rather than continuous inline testing.
The integration of functional features—such as tear notches, degassing valves, or self-seal zippers—introduces extra vulnerability to tears and punctures. These accessories disrupt the continuous polymer web, requiring specialized sealing profiles to integrate them without compromising the overall barrier.
Testing protocols must rigorously verify that the seal barriers around these functional accessories remain fully intact under load. Specialized vacuum decay fixtures and targeted dye penetration tests are often deployed to inspect the perimeter seals of integrated valves and zippers. If the seal around a degassing valve fails, the entire hermetic barrier is lost, regardless of how strong the main corner seals perform. QA teams must treat every inserted feature as a primary failure risk and test it accordingly.
A robust QA protocol differentiates between testing performed during the conversion of flexible plastic packaging (the bag manufacturing stage) and testing executed during final filling operations. Conversion testing focuses on the baseline integrity of the manufactured seals, while filling line testing ensures the final closure seals meet the same rigorous standards after product insertion.
Testing intervals must be strictly defined. Standard frameworks require testing at machine start-up, after any material roll changes, during shift changes, and at regular time-based intervals (e.g., every 30 to 60 minutes) during continuous production. Calculating the statistical sampling size based on overall production volume and Acceptable Quality Limits (AQL) ensures that the testing frequency provides a statistically valid representation of the entire production run. Skipping intervals to save time inevitably leads to large batches of defective products reaching the warehouse.
Baseline visual quality checks remain the first line of defense. Operators must verify uniform seal width, overall bag symmetry, and the complete absence of wrinkles, pleating, or scorching along the seal jaws. A formal defect triage framework is necessary to classify and handle issues appropriately.
This framework must distinguish between cosmetic issues, such as slight print misalignment, and critical failures, such as visible channel leaks or open seals. While manual visual inspection is standard, modern facilities increasingly rely on automated inline vision systems. These systems use thermal imaging and high-resolution cameras to flag thermal defects and seal inconsistencies in real-time, removing human error from the initial inspection phase. When a vision system flags a defect, the operator must immediately pull the bag and subject it to destructive testing to verify the failure.
Testing data is only as reliable as the equipment calibration and the operator performing the test. Routine, documented calibration of tensile testers, pressure gauges, and vacuum chambers is a mandatory requirement for any credible QA program. Equipment that drifts out of calibration will produce false passes, allowing defective packaging into the supply chain.
Standardized operator training is equally critical. Operators must understand not just how to push buttons on a tensile tester, but how to properly cut samples, align them in the grips, and interpret the failure modes. Consistent, repeatable results require operators who rigorously follow the established standard operating procedures without deviation. Plant managers should conduct regular audits of the QA staff to ensure testing protocols are being executed exactly as written.
Facility managers must analyze the conceptual trade-offs between testing methodologies. Destructive tests, including peel, burst, and dye penetration, provide critical, detailed data on exact failure modes and the mechanical limits of the packaging. However, they incur ongoing, cumulative costs in wasted packaging materials and destroyed product.
Non-destructive tests, primarily vacuum decay, save materials and allow the tested product to return to the production line. However, they only confirm the presence or absence of a leak; they do not provide data on the mechanical limits of the seal strength. A package might pass a vacuum decay test but still possess a weak seal that will rupture under palletization stress. Therefore, a facility cannot rely solely on non-destructive methods if mechanical strength is a primary concern.
QA testing often becomes an operational bottleneck if not managed correctly. Striking the right balance requires integrating rapid, inline non-destructive testing with slower, offline destructive testing. Inline vision systems and automated leak detectors can screen 100% of the production for gross defects without slowing down the line.
Meanwhile, statistical samples are pulled offline for rigorous destructive testing to verify mechanical strength and long-term creep resistance. This hybrid approach maintains high production speeds while ensuring strict compliance with mechanical strength and hermetic integrity standards. By layering these methods, packaging facilities protect their throughput metrics while defending against catastrophic field failures.
Validating the integrity of heavy-duty flexible packaging requires a multi-layered approach that addresses both mechanical strength and hermetic integrity. Relying on a single test method leaves critical vulnerabilities undetected, especially in complex structural designs.
Audit current QA protocols immediately to ensure strict compliance with ASTM F88 and ASTM F2096 testing standards.
Calculate the ongoing material waste costs of destructive testing to justify the capital expenditure for non-destructive vacuum decay equipment.
Implement dynamic strength tests, specifically creep and drop testing, for all heavy formats to accurately simulate real-world supply chain stresses.
Partner with testing equipment manufacturers to design a hybrid validation framework that integrates inline speed with offline diagnostic accuracy.
A: Seal strength measures the physical mechanical force required to break or peel the seal apart. Seal integrity refers to the continuity of the seal, ensuring the complete absence of leaks and the maintenance of a hermetic barrier to protect the product.
A: ASTM F88 is the primary standard test method used to measure the peel strength of flexible barrier materials. It provides a quantifiable, repeatable procedure for determining the force required to separate a sealed package using a tensile testing machine.
A: Manual hand-peeling fails entirely to generate repeatable, quantifiable peel strength data. Because human force is inconsistent, it is impossible to establish a reliable baseline or track data trends necessary for strict QA compliance and continuous improvement.
A: Testing these high-capacity bags requires a combination of tensile testing for baseline strength, creep testing to evaluate sustained pressure resistance, and dynamic drop testing to account for the heavy load-bearing requirements during palletization and transit.
A: Yes, water submersion testing (bubble emission) is a destructive test. The package must be physically punctured to introduce internal air pressure before submersion, rendering both the product and the packaging unusable for distribution.
A: As a baseline, seals should be tested at every machine start-up, after any material roll change, during shift changes, and at standardized intervals—typically every 30 to 60 minutes—during continuous production to ensure consistent quality.
A: The corners contain gusset transition zones where two layers of film abruptly fold into four layers. This thickness change requires highly precise heat and jaw pressure to seal completely without creating microscopic capillary channels where leaks occur.
