The packaging industry is shifting away from rigid glass and plastic containers toward flexible formats. This transition is driven by freight efficiency, carbon footprint reduction, and evolving consumer preference. Moving high-viscosity products like pastes, gels, and heavy sauces into flexible packaging introduces technical friction on the production line. Operations teams face specific risks when handling thick liquids. These include poor evacuation rates, spout clogging, seal contamination during filling, and compromised barrier integrity.
This guide provides packaging engineers, operations managers, and brand owners with a rigorous technical framework. We evaluate whether pouches with spouts can reliably package high-viscosity products without sacrificing shelf life, line speed, or production efficiency. You will learn how to match film structures, spout geometries, and filling equipment to your specific product viscosity.
Viscosity Dictates Spout Architecture: Successful deployment requires matching the spout diameter and internal channel design to the specific Centipoise (cP) rating of the product to prevent clogging and ensure consistent flow.
Filling Method Impact on Line Speed: Choosing between filling through the spout vs. filling through an open top before sealing significantly affects cycle times and equipment capital expenditure (CapEx) for thick products.
Material Science Determines Shelf Life: Thick, acidic, or oil-based products (like tomato sauce or mayonnaise) demand custom multi-layer laminated films (e.g., PET/AL/NY/PE) with high oxygen and moisture barriers (OTR/WVTR).
Evacuation Rates Outperform Rigid Containers: When engineered correctly, flexible pouches yield a higher product evacuation rate (less retained waste) compared to traditional rigid bottles or jars.
Understanding product flow is the foundation of flexible packaging design. Viscosity is measured in Centipoise (cP). This metric establishes a technical baseline for how a liquid resists deformation under shear stress. Water sits at 1 cP. Condiments like ketchup range between 5,000 and 20,000 cP. Dense products like tomato paste or peanut butter often exceed 50,000 cP. These metrics directly dictate the mechanical force required to move the product through filling nozzles and out of consumer spouts.
Packaging engineers must account for shear-thinning (thixotropic) versus Newtonian fluid behavior. Shear-thinning fluids, such as mayonnaise or certain gels, decrease in viscosity when subjected to shear stress during the filling process. They flow easily under pressure but quickly regain their thick consistency once inside the pouch. Newtonian fluids maintain a constant viscosity regardless of shear rate. Recognizing these flow dynamics helps when calibrating pump pressures and selecting spout geometries to prevent structural blowout during high-speed filling.
Product Type | Approximate Viscosity (cP) | Flow Behavior | Recommended Spout ID |
|---|---|---|---|
Water / Broth | 1 - 10 | Newtonian | 8.5mm - 10mm |
Salad Dressing | 1,000 - 3,000 | Shear-thinning | 10mm - 15mm |
Ketchup / Mustard | 5,000 - 20,000 | Shear-thinning | 15mm - 22mm |
Tomato Paste / Peanut Butter | 50,000 - 100,000+ | Thixotropic / Bingham Plastic | 22mm - 33mm |

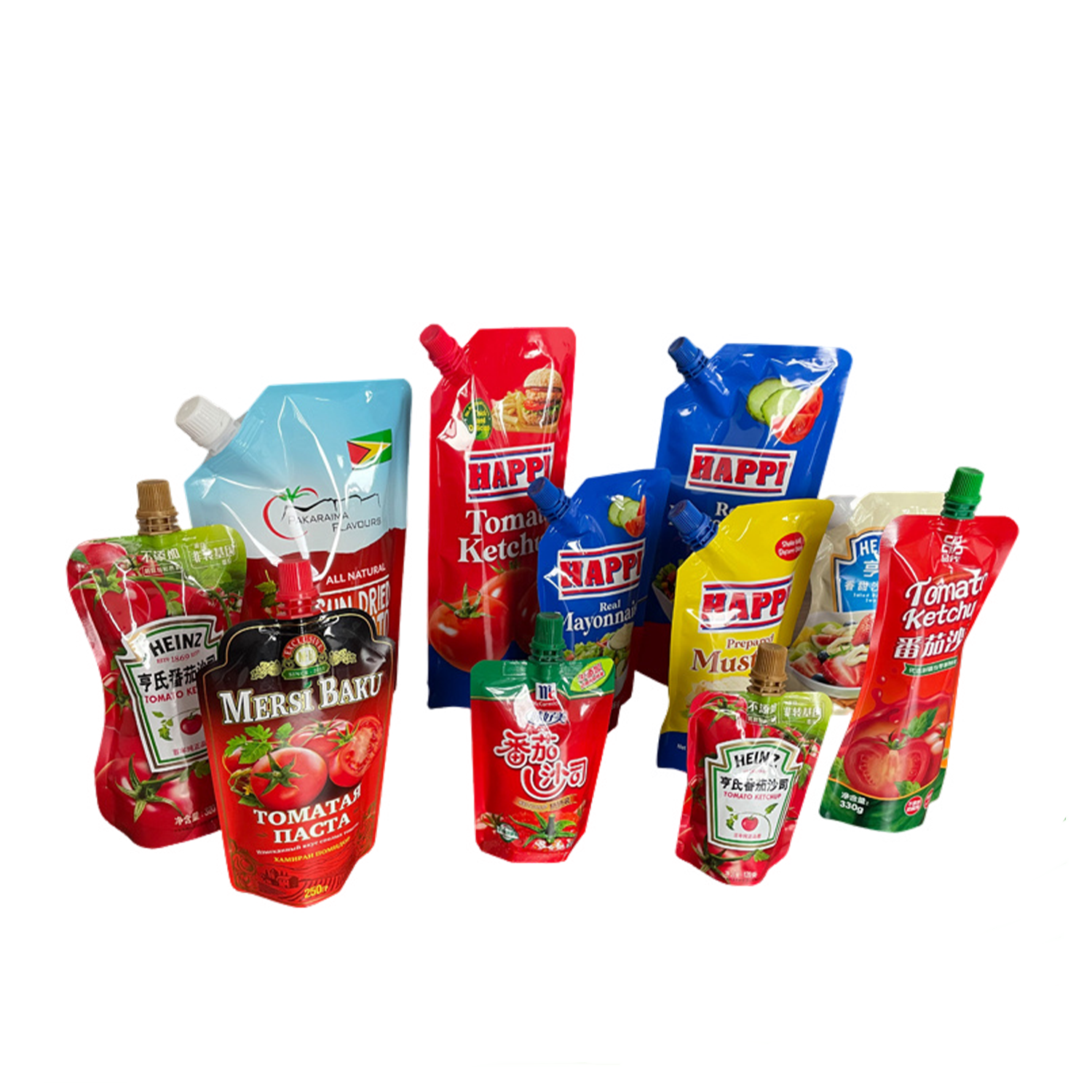

In food-grade applications, flexible formats excel at protecting sensitive formulations. Spout Pouches for Tomato Sauce, mayonnaise, nut butters, and baby food purees require strict adherence to food safety standards. They demand FDA-compliant contact layers and robust barrier properties to prevent oxidation. The flexibility of the pouch allows consumers to squeeze out dense purees with minimal effort. This provides a significant ergonomic advantage over rigid jars.
For non-food and industrial applications, the requirements shift toward chemical resistance. Highly viscous liquids like cosmetic creams, hair gels, laundry detergents, and chemical adhesives demand specialized internal sealant layers. PE or CPP blends work well here. They will not degrade when exposed to surfactants, solvents, or extreme pH levels. Regulatory compliance focuses on preventing chemical leaching and ensuring child-resistant closures for hazardous materials.
There is a mechanical threshold where a product becomes too viscous for standard gravity-fed spouts. When viscosity exceeds 100,000 cP, mechanical extrusion or custom-shaped pouch squeezing becomes necessary. At this stage, the pouch acts less like a liquid container and more like a flexible dispensing tube. You must design the pouch body to withstand repeated, forceful squeezing without delaminating or bursting at the seams.
Thick, heavy liquids exert significant hydraulic pressure on pouch walls. They require exceptional barrier properties to maintain shelf life. Single-layer films are entirely inadequate for this task. Engineers rely on multi-layer laminations to handle the weight and chemistry of high-viscosity products.
Standard High-Barrier (Non-Foil): Structures like PET/NY/PE offer excellent puncture resistance and clarity. The Nylon (NY) layer provides the necessary mechanical strength to prevent drop-impact failures. The Polyethylene (PE) acts as a reliable heat-seal layer.
Maximum Barrier (Foil-Lined): For products highly sensitive to oxygen and light, such as high-fat condiments, PET/AL/NY/PE is the standard. The Aluminum (AL) foil layer provides near-zero Oxygen Transmission Rate (OTR) and Water Vapor Transmission Rate (WVTR). This prevents oxidation and rancidity.
Retort-Grade Barrier: Products requiring thermal processing demand structures like PET/AL/NY/CPP. Cast Polypropylene (CPP) replaces PE as the sealant layer. It can withstand sterilization temperatures up to 250°F (121°C) without melting or compromising the seal integrity.
Chemical resistance is equally important. Highly acidic products like tomato-based or vinegar-rich sauces can aggressively attack the adhesive layers binding the film structure. High-fat products do the same. Utilizing specialized, acid-resistant polyurethane adhesives prevents catastrophic delamination during the product's shelf life. We always run compatibility tests with the exact product formulation before finalizing the film structure.
The internal diameter (ID) of the spout is the primary bottleneck for high-viscosity products. A standard 8.5mm spout is sufficient for thin liquids. It will cause severe clogging and slow dispensing for anything above 5,000 cP. Thick sauces require wide-mouth spouts. We typically specify 15mm, 22mm, or even 33mm diameters. The correlation between product particulate size, viscosity, and spout ID must be tested rigorously to ensure smooth consumer dispensing.
Internal spout geometry also plays a major role. Smooth-wall interior channels reduce friction drag. This allows thixotropic products to flow with less applied pressure. Any internal ridges or sharp angles can cause product buildup, leading to blockages. We inspect spout molds to ensure zero flash or plastic burrs remain inside the channel.
Cap selection involves balancing food safety with user convenience. Anti-choke caps are mandatory for baby food applications. Flip-top dispensing valves offer precise flow control for condiments, preventing messy splatters. Tamper-evident ring designs provide visible proof of product safety. This is a non-negotiable requirement for retail food and chemical packaging.
Dense sauces have a high specific gravity. This significantly impacts the center of gravity in stand-up Pouches with Spouts. If the base is not engineered correctly, the pouch will sag, lean, or topple over on the retail shelf. A leaning pouch damages brand perception and complicates retail display.
Bottom gusset styles dictate weight distribution. The Doyen seal is common for lighter volumes, providing a distinct U-shaped base. The K-Seal features diagonal seals at the bottom corners. It offers superior stability for heavier, denser liquids by creating a flatter resting surface. The Plow Bottom (or corner gusset) is ideal for very heavy volumes. The product weight sits directly on the flat bottom film, maximizing shelf stability.
Structural customization enhances the end-user experience. Integrated die-cut handles allow consumers to carry heavy multi-liter pouches easily. Ergonomic shaped profiles, such as a narrowed waist, assist consumers in gripping and squeezing heavy, high-viscosity contents with one hand. We often design custom die-lines to match the specific dispensing motion required by the product.
Standard gravity fillers fail completely when processing high-viscosity fluids. The product simply will not flow fast enough to meet commercial line speeds. Operations must utilize mechanical force to move thick pastes and sauces. Selecting the right pump is the most important equipment decision you will make.
Piston Fillers draw a specific volume of product into a cylinder and use a pneumatic or servo-driven piston to push it into the pouch. Rotary Lobe Pumps and Positive Displacement Pumps use rotating gears or lobes to continuously force thick, particulate-heavy products through the filling nozzles without crushing the ingredients. These pumps handle high pressures and maintain accurate fill weights.
To improve flow rates, facilities often utilize heated hoppers and jacketed manifolds. By temporarily raising the product temperature during the fill cycle, the viscosity drops. This allows for faster filling speeds. The temperature must be carefully controlled to avoid degrading the product's flavor, color, or nutritional profile. We monitor hopper temperatures constantly to ensure consistent flow characteristics.
Filling Mechanism | Best For | Pros | Cons |
|---|---|---|---|
Gravity Filler | Water, thin juices | Low cost, simple maintenance | Fails with high viscosity |
Piston Filler | Pastes, heavy sauces | Highly accurate volume control | Slower cycle times for large volumes |
Rotary Lobe Pump | Particulate sauces (salsa) | Gentle on particulates, continuous flow | Higher maintenance complexity |
Positive Displacement | Peanut butter, thick gels | Handles extreme viscosity easily | High initial equipment cost |
Selecting the filling method dictates line speed, equipment selection, and defect rates. You must choose the method that aligns with your production volume and product characteristics.
Method A: Filling Through the Spout utilizes pre-welded spout pouches. This method requires high-precision rail-feeding systems to align the narrow spout under the nozzle. It limits line speed due to the narrow orifice constraint. However, it significantly reduces the risk of seal contamination because the top of the pouch is already hermetically sealed by the manufacturer. We use this method for smaller volumes or highly sensitive products.
Method B: Filling Through the Open Pouch Top or Base allows for high-velocity filling through a much wider opening. The spout can be pre-welded in the corner or top center, leaving the rest of the pouch open for the fill nozzle. This method achieves higher throughput but requires strict seal cleanliness protocols. Any product splashback onto the inner sealant web will cause catastrophic seal failures during the final heat-sealing process.
Thick sauces are prone to stringing, tailing, or dripping from the nozzle after the fill cycle completes. If this residue lands on the seal area, the pouch will leak. Leaking pouches ruin pallets and damage retailer relationships.
Mechanical mitigation strategies are essential on the filling line. Diving nozzles descend directly into the pouch, filling from the bottom up to minimize splash. Blow-off or vacuum-back mechanisms clear the nozzle tip instantly after the fill. In environments where contamination is unavoidable, ultrasonic sealing technology can vibrate through product residue. This creates a hermetic seal even when the seal area is compromised by grease or paste.
Thermal processing dictates film selection and cooling protocols. Hot-fill processes (up to 195°F/90°C) sterilize the product and the internal pouch surfaces simultaneously. The pouch must withstand this heat without the layers delaminating or the spout warping. We specify high-temperature PE blends for hot-fill applications.
Retort sterilization subjects the sealed pouch to high-pressure steam up to 250°F (121°C) for extended periods. This requires specialized retort-grade films and adhesives. During the subsequent cooling phase, rapid temperature drops can induce vacuum pressures inside the pouch. Proper pressure-cooling cycles are required to prevent vacuum-induced pouch deformation or condensation-induced delamination. We calibrate the retort cooling cycle to match the specific pouch volume and film structure.
One of the most significant advantages of flexible packaging is the evacuation rate. Rigid glass or plastic containers force consumers into a frustrating scrape and shake routine to extract thick condiments. A significant portion of the product remains trapped on the container walls. This frustrates consumers and wastes product.
Flexible pouches allow users to physically squeeze and roll the packaging, forcing the product toward the spout. Average evacuation percentages for spouted pouches often reach 95-99%. In contrast, rigid plastic bottles containing thick condiments typically yield only 80-88% evacuation. This reduction in product waste translates directly to increased perceived consumer value. We design the pouch shape to facilitate easy rolling from the bottom up.
Consumer experience hinges on dispensing control. Thick liquids require precise application, whether it is a line of mayonnaise on a sandwich or a dollop of cosmetic cream. Spouted pouches offer superior directional dispensing compared to wide-mouth jars. By pairing a flexible body with a restrictive spout valve, consumers can control the flow rate precisely. This prevents sudden splatter or over-application. We test various spout orifices with consumer focus groups to find the optimal flow rate.
Flexible pouches have a higher surface area-to-volume ratio than cylindrical rigid containers. This makes Oxygen Transmission Rates (OTR) and Moisture Vapor Transmission Rates (MVTR) critical metrics for achieving a 12- to 24-month shelf life. Foil-lined structures provide absolute barriers, ensuring that oxygen-sensitive sauces do not darken or develop off-flavors over time. Rigorous accelerated aging tests must be conducted to verify that the barrier integrity holds up under retail storage conditions. We place sample pouches in environmental chambers to simulate long-term warehouse storage.
The inbound freight advantages of flexible packaging are massive. Empty, flat pouches ship in dense, tightly packed cartons. A single pallet can hold tens of thousands of flat pouches. Achieving the same unit count with empty rigid bottles or glass jars would require multiple truckloads. This drastic reduction in inbound freight volume lowers transportation costs and significantly reduces the carbon footprint of the supply chain. Warehouse managers appreciate the space savings.
Transitioning to custom flexible packaging involves upfront investments. Custom spout injection molds require tooling capital. High-barrier laminated films are produced in massive master rolls, leading to high Minimum Order Quantities (MOQs). Brands must forecast accurately to absorb these initial setup costs. You balance the upfront expenditure against the long-term savings in freight and material weight. We advise clients to standardize pouch sizes across multiple SKUs to reach MOQs faster.
Recyclability remains a complex challenge. Traditional multi-layer barrier films (like PET/AL/NY/PE) are inherently difficult to recycle because the dissimilar materials cannot be easily separated in standard municipal recovery facilities. The industry is rapidly advancing toward mono-material structures. Spouted pouches made entirely from Polyethylene (PE/PE) or Polypropylene (PP/PP) are entering the market for high-viscosity applications. While these mono-materials offer improved recyclability, they currently require compromises in barrier performance and thermal tolerance compared to foil-lined alternatives. We evaluate the trade-offs between sustainability goals and required shelf life for every project.
Pouches with spouts are highly viable and often superior for packaging sauces and high-viscosity products. Success depends entirely on precision engineering. The spout diameter, film barrier, and filling machinery must be matched exactly to the product's specific physical properties and viscosity. When executed correctly, flexible packaging improves evacuation rates, lowers freight costs, and enhances consumer convenience.
Request material data sheets from your packaging supplier to verify OTR and WVTR specifications.
Conduct thorough chemical compatibility testing with your specific product formulation to ensure adhesive layers will not delaminate.
Run a pilot fill on your existing or planned machinery to validate flow rates, pump pressures, and seal integrity.
Perform drop tests and accelerated aging tests on the filled pilot pouches to confirm structural durability.
A: With the correct wide-mouth spout (e.g., 22mm or larger) and a robust piston filler, flexible pouches can successfully handle products exceeding 100,000 cP, including dense pastes and heavy gels.
A: Not always. While foil (PET/AL/NY/PE) provides the highest barrier for oxygen-sensitive or high-fat sauces, many high-viscosity products can achieve adequate shelf life using clear, high-barrier non-foil structures like PET/NY/PE.
A: Clogging is prevented by selecting a spout internal diameter that is significantly larger than the maximum particulate size in the sauce, combined with smooth-wall internal spout geometry to reduce friction.
A: Yes. Pouches engineered with retort-grade films (such as PET/AL/NY/CPP) and specialized adhesives can withstand thermal processing temperatures up to 250°F (121°C) without delaminating or melting.
A: Bottom or top-filling utilizes the wide, open end of the pouch, allowing positive displacement pumps to inject thick products rapidly. Spout-filling forces the dense product through a narrow orifice, inherently slowing the line speed.
A: Traditional multi-layer foil pouches are difficult to recycle. However, new mono-material (PE/PE or PP/PP) spouted pouches are designed for store-drop-off recycling streams, though they may offer lower barrier properties.
