Incorrect packaging specifications carry massive financial and reputational risks. Under-engineering a flat barrier pouch leads to product spoilage, organoleptic degradation, and costly recalls. Over-engineering destroys profit margins by utilizing heavy materials unnecessarily. Selecting the optimal material architecture requires balancing shelf-life demands and regulatory compliance against the physical realities of the product and converting machinery.
This guide provides a strictly technical framework for evaluating single, double, and multi-layer film structures. We compare foil, metalized, and clear barrier options to help you determine the exact specification required for your application. By understanding the performance metrics of different materials, you can optimize your packaging strategy for maximum protection and line efficiency without wasting resources on excessive material layers.
Barrier Requirements Dictate Structure: The choice between foil, metalized films, and clear coatings (like EVOH) depends entirely on your product's specific Oxygen Transmission Rate (OTR) and Water Vapor Transmission Rate (WVTR) thresholds.
Asymmetry Requires Care: Designing flat barrier pouches with a single-sided clear panel (clear front/opaque back) requires balancing material tension to prevent pouch curling during sealing.
Machinability Matters: Film structure impacts not just shelf life, but how efficiently packaging roll film runs on Form-Fill-Seal (FFS) equipment, affecting seal integrity and throughput.
Protecting Product Aesthetics: High-barrier films do more than prevent spoilage; they preserve active ingredients, block UV light to prevent color fading, and stop volatile compounds from escaping (preserving taste and aroma).
Cost vs. Performance Trade-Off: Metalized PET offers a highly cost-effective alternative to pure aluminum foil for products that do not require absolute zero transmission rates.
Sustainability Introduces Complexity: Transitioning to mono-material recyclable flat barrier pouches requires careful re-evaluation of barrier coatings to prevent a drop in performance.
Quantifying exact barrier levels is the first step in material selection. OTR measures the amount of oxygen passing through the film, recorded in cc/m²/day. WVTR measures moisture transfer, recorded in g/m²/day. Products highly sensitive to oxidation require structures with extremely low OTR values. Moisture-sensitive powders demand low WVTR to prevent clumping. Matching the film transmission rates to the product degradation profile ensures optimal shelf life.
Material Layer | OTR (cc/m²/day) | WVTR (g/m²/day) | Primary Application |
|---|---|---|---|
Standard PET (12 micron) | High (~110) | High (~40) | Print web, basic protection |
Metalized PET (VMPET) | Low (~1.0) | Low (~1.0) | Snacks, coffee, dry goods |
Aluminum Foil (7 micron) | Zero (0.01) | Zero (0.01) | Pharma, sensitive liquids |
EVOH Coated Film | Very Low (~0.5) | Moderate (~10) | Clear display packaging |
Barrier films must preserve the product sensory qualities. High-performance structures prevent volatile flavor and aroma loss, a phenomenon known as scalping. Blocking UV and visible light wavelengths prevents color fading, oil rancidity, and nutritional degradation. Light-sensitive products require opaque layers, such as aluminum foil or heavy ink coverage, to maintain aesthetic and chemical integrity throughout the distribution cycle. We often see brands fail here by choosing clear windows for products that degrade rapidly under supermarket lighting.
Evaluating the product chemical makeup prevents catastrophic field failures. High acidity, essential oils, and aggressive solvents interact with the innermost sealant layer. This interaction causes delamination or seal failure if specified incorrectly. The sealant layer must be chemically compatible with the product. Testing the interaction between the product and the specific polymer formulation of the contact layer prevents leaks during long-term storage.
Film structure directly impacts the efficiency of converting Packaging Roll Film into finished pouches on automated lines. Film stiffness, coefficient of friction (COF), and sealant activation temperatures dictate how well the material runs on Form-Fill-Seal (FFS) equipment. Incorrect COF causes the film to drag or slip. Inappropriate activation temperatures result in weak seals or burned film. Optimizing these mechanical properties ensures high throughput and consistent seal integrity.
Single-layer films are highly permeable to gases and moisture. They fail in high-barrier applications. Multi-layer structures achieve the required protection by combining specialized polymers. These laminations consist of an outer printable layer, a middle barrier layer, and an inner sealant layer. Combining different polymers allows engineers to tailor the package performance to specific product needs without over-engineering the entire web.
Multi-layer structures utilizing aluminum foil represent the gold standard for maximum protection against light, oxygen, and moisture. Foil provides near-zero transmission rates. It works perfectly for highly sensitive pharmaceuticals and premium food items. However, foil laminations are heavy and susceptible to pinholing or flex-cracking if subjected to severe mechanical stress during handling or transportation. You must account for distribution abuse when specifying foil.
Metalized polyethylene terephthalate (VMPET) and metalized polypropylene (VMCPP) offer excellent barrier properties at a lower weight than solid foil. A microscopic layer of vacuum-deposited aluminum significantly reduces OTR and WVTR. While not providing the absolute zero transmission of foil, metalized films are highly effective for a vast range of consumer goods. They balance performance with material reduction.
Products requiring visibility demand clear high-barrier films. Ethylene Vinyl Alcohol (EVOH) provides an exceptional oxygen barrier but remains sensitive to moisture. Aluminum Oxide (ALOx) and Silicon Oxide (SiOx) coatings offer combined OTR and WVTR performance while maintaining transparency. These advanced coatings allow brands to showcase the product without compromising shelf life. They require careful handling during the converting process to prevent micro-cracking of the glass-like coating.
Designing pouches with a clear front panel for product display and an opaque, high-barrier back panel introduces technical challenges. Balancing film tension, heat resistance, and expansion coefficients prevents pouch curling during heat sealing. The clear and opaque webs must have compatible thermal properties. This ensures the finished pouch lays flat and maintains structural integrity on retail shelves.

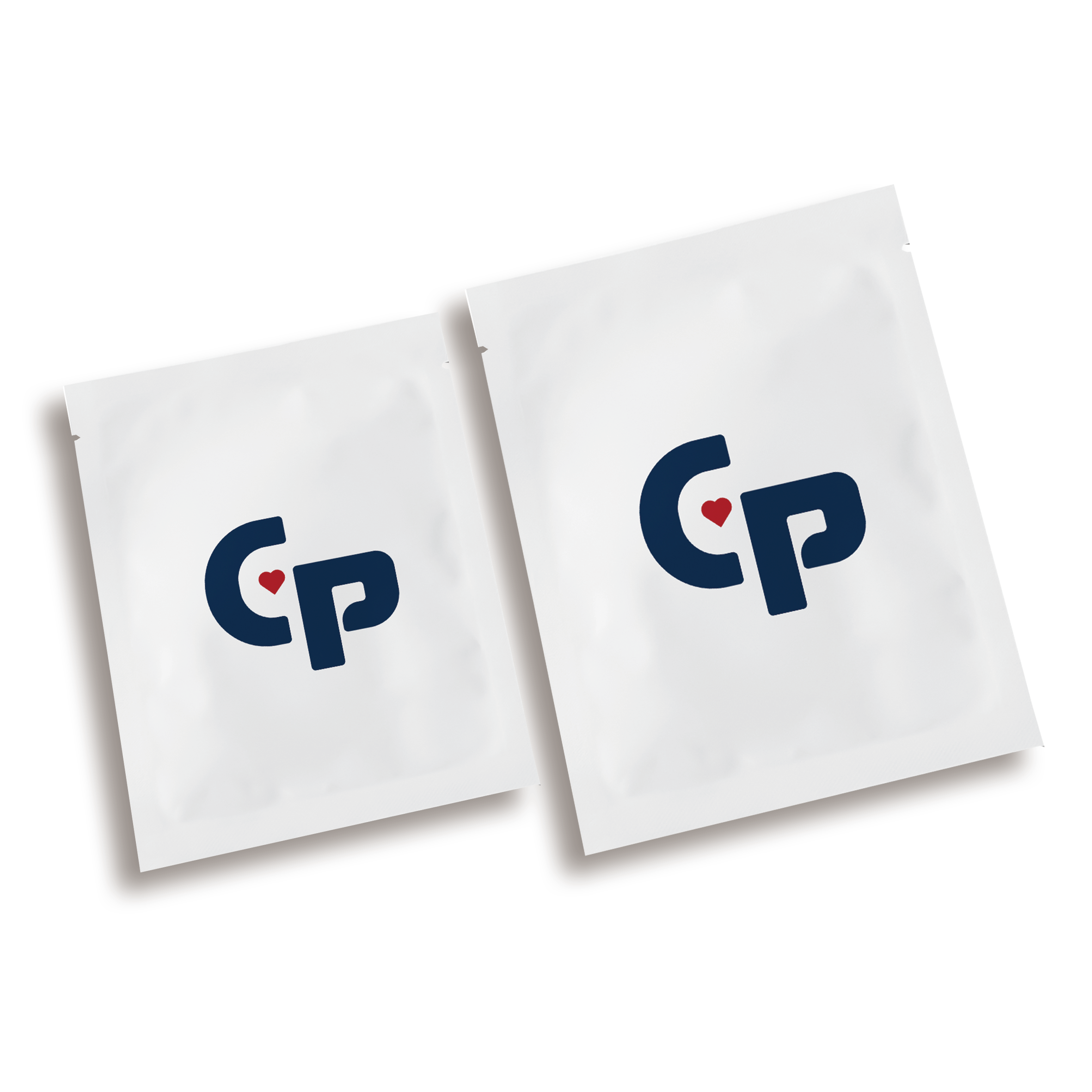

The structural demands of three-sided seal flat pouches differ significantly from back-sealed pillow pouches. 3SS designs require excellent edge seal strength and lay-flat properties for optimal retail presentation. Pillow pouches rely on lap or fin seals along the back. The choice of configuration dictates the specific mechanical properties required from the film structure, particularly regarding stiffness and seal layer performance.
Film thickness and material stiffness impact the retail presentation of Flat Barrier Pouches. The structure must possess sufficient rigidity to prevent warping, wrinkling, or creasing when boxed or hung on peg hooks. Proper material selection ensures the pouch maintains its intended shape and aesthetic appeal throughout the supply chain. Flimsy structures reflect poorly on brand quality.
Biaxially oriented polyamide (BOPA/Nylon) absorbs physical shock and prevents punctures. Nylon provides exceptional toughness. It protects the pouch from sharp product edges and the stresses of secondary shipping. Adding nylon increases material weight, but it remains mandatory for heavy or sharp products that would otherwise compromise a standard PET/PE lamination during transit.
Dry powders require high moisture barriers to prevent clumping and degradation. They often utilize metalized films or foil. Liquid or high-fat foods require robust oxygen barriers, strong grease resistance, and burst-resistant seal strengths to prevent leakage and rancidity. The film structure must be tailored to the physical state and chemical composition of the food product to prevent field failures.
Medical and pharma packaging face strict regulatory requirements. Structures must utilize FDA-approved contact layers and often require child-resistant film tear strengths. Absolute light-blocking chemistry and near-zero transmission rates are mandatory to ensure the efficacy of active pharmaceutical ingredients throughout the product stated shelf life. Foil is almost always the default choice here.

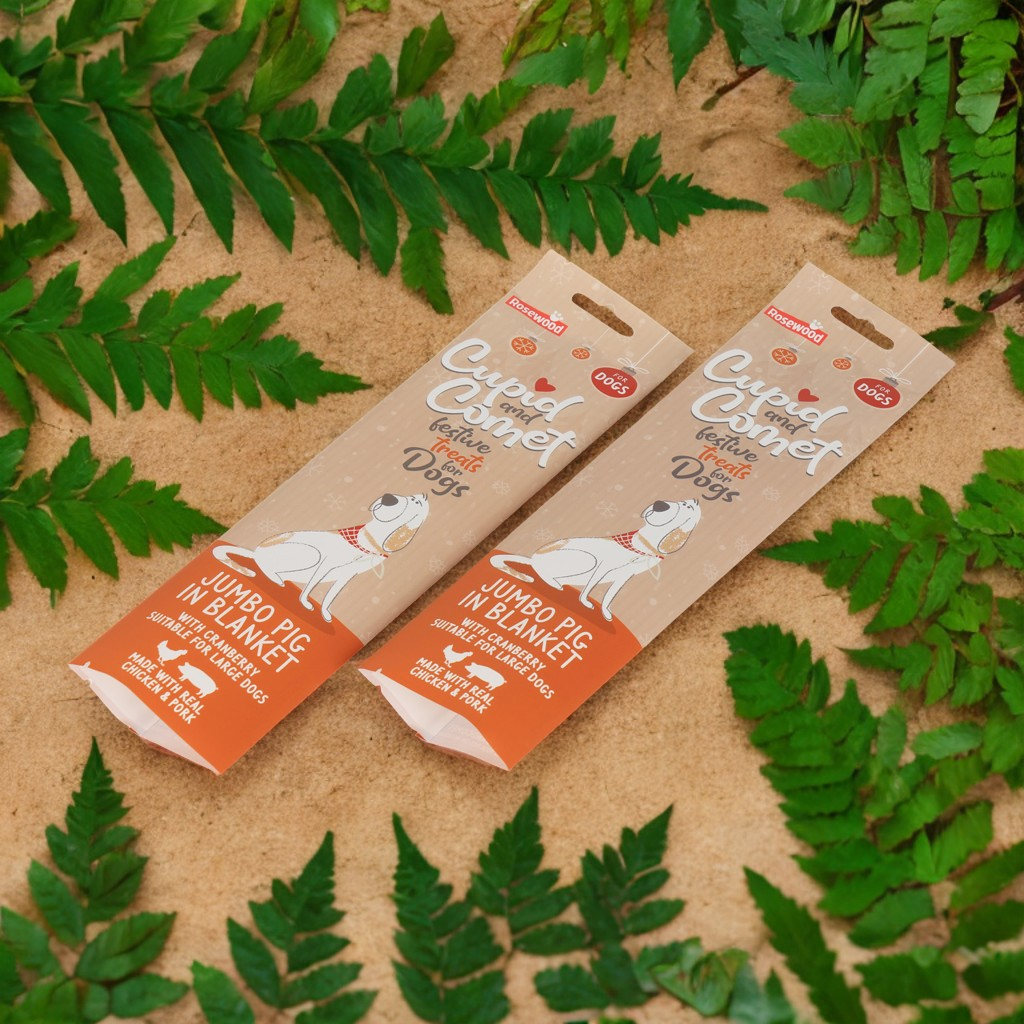

Pet packaging presents specific challenges. Advanced grease barriers prevent oil migration through the film layers. High puncture resistance withstands sharp kibble or dried treats. Multi-layer structures incorporating nylon and specialized sealant layers ensure package integrity and prevent premature spoilage. We frequently see standard PE sealants fail when exposed to high-fat pet treats over several months.
Calculating the return on upgrading film structures requires hard data. Compare the incremental cost of adding an EVOH or metalized layer versus the financial benefit of extending shelf life by months and reducing distributor waste. A heavier film structure often pays for itself by minimizing product returns and expanding geographical distribution capabilities.
The industry shift toward sustainable packaging introduces technical difficulties. Traditional mixed-material laminations are notoriously difficult to recycle. Emerging mono-material barrier structures offer improved recyclability but often require performance compromises. Evaluating these new materials necessitates careful testing to ensure they meet the required OTR and WVTR thresholds without failing on the packaging line.
There is an inverse relationship between film thickness and flex-crack resistance. Adding nylon layers increases durability and puncture resistance but impacts overall material weight, recyclability, and stiffness. Balancing the need for physical toughness against flexibility requires a thorough understanding of the distribution environment and the handling processes at the retail level.
Layer separation and weak seals stem from incorrect sealant layer specification or incompatible adhesive curing times. Contamination of the seal area by product dust also compromises hermetic seals. Specifying the correct polymers and maintaining strict process control during converting and filling mitigates these risks. You must match the sealant melt index to your specific machine jaw configuration.
Mismatching outer and inner film layers causes curl issues when exposed to the high heat of sealing jaws. Mitigating this requires balanced laminate design. Ensure the thermal expansion coefficients of the various layers are compatible. Proper tension control on the FFS equipment produces flat, consistent pouches that stack correctly in secondary cartons.
Sourcing custom multi-layer roll stock involves managing minimum order quantities and extended lead times. Specialized laminations require more complex manufacturing processes compared to stock structures. Planning production schedules around these extended lead times avoids stockouts and production delays. Always keep buffer stock of your most critical barrier films.
Non-negotiable physical tests verify shelf-life claims and ensure the chosen film structure performs under real-world conditions. You must execute these before full-scale production.
Burst testing to verify seal strength under pressure.
Drop testing to simulate distribution abuse and check for flex-cracking.
Vacuum leak detection to identify microscopic pinholes in the barrier layer.
Accelerated aging chamber trials to confirm long-term OTR and WVTR performance.
Coefficient of friction testing to ensure smooth machinability on FFS lines.
Audit your current product failure rates to identify structural weaknesses in your existing packaging.
Calculate exact barrier requirements based on your target shelf-life goals and distribution environment.
Request material data sheets and physical samples from your packaging manufacturer for pilot testing.
Run a small batch trial on your FFS equipment to verify machinability and seal integrity before committing to full-scale production.
A: Aluminum foil is a solid sheet of metal providing near-zero transmission rates but is heavy and prone to flex-cracking. Metalized PET uses a polymer film coated with vaporized aluminum, offering excellent barrier strength at a lower weight, though it does not provide an absolute barrier like solid foil.
A: The three-sided seal configuration optimizes internal volume and provides maximum structural rigidity for hanging displays. It ensures consistent seal integrity on automated FFS machinery, making it highly efficient for high-speed production lines.
A: Yes, mono-material PE/PE or PP/PP structures with specialized barrier coatings are available. However, recycling infrastructure is still developing, and these materials may present performance differences compared to traditional mixed-material laminations.
A: Curling is prevented by matching the shrink rates and thermal properties of the clear front film with the opaque back film during the lamination process. Balanced tension control during converting is also critical.
A: Total structure thickness is dictated by product weight, required puncture resistance, shelf-life demands, and the specific running requirements of your FFS machine. Heavier products naturally require thicker, more robust films.
A: EVOH is a superior oxygen barrier used primarily when the product requires a clear viewing window but is highly sensitive to oxidation and degradation, such as certain premium food items.
