Spout placement on flexible packaging is not merely an aesthetic choice. It is a critical engineering decision that dictates filling line efficiency, seal integrity, and end-user dispensing mechanics. Selecting the wrong position for a spout leads to severe operational risks on the plant floor. Incompatible filling machinery often requires heavy retrofits, while incorrect placement increases defect rates due to thermal seal misalignment. Poor product evacuation directly results in customer dissatisfaction and increased product waste.
To mitigate these risks, packaging engineers and production managers must evaluate spout configurations based on strict technical criteria. This guide provides a comprehensive evaluation framework for the three primary spout positions: center-top, corner, and front-face. By analyzing product viscosity, total volume, and specific manufacturing constraints, teams can specify the correct spout architecture to ensure seamless production runs and optimal product performance.
Machinery Dictates Placement: Center-top spouts are generally required for automated rail-filling systems, whereas corner spouts often necessitate specialized rotary or inline pouch-filling equipment.
Viscosity and Evacuation: Corner positioning offers superior gravity-assisted evacuation for high-viscosity liquids and large-format refill pouches, while center positioning provides balanced, controlled pouring for low-viscosity beverages.
Seal Integrity Risks: The transition point where the rigid spout meets the flexible film is the primary failure zone; corner spouts introduce complex asymmetrical sealing angles that require strict thermal tolerance controls.
Ergonomics vs. Volume: Drink spout pouches under 500ml benefit from center-top placement for direct consumption, whereas volumes exceeding 1L require corner or face placement to manage the shifting center of gravity during pouring.
Pre-Filling Stability: Ensuring the bottom gusset is fully expanded to let the pouch stand upright during the filling cycle is highly dependent on spout alignment and nozzle insertion angles.
The primary constraint when designing pouches with spouts is the existing filling infrastructure on your production floor. Through-the-spout filling involves injecting the liquid directly through the pre-sealed spout opening. This method relies heavily on automated rail systems that suspend the pouch by the spout flanges. Center-top positioning is almost universally required for this setup to maintain physical balance on the rails. If the spout is off-center, the pouch hangs at an angle, causing jams and inconsistent fill levels.
Conversely, through-the-pouch filling injects the product into the open top of the pouch before the spout is sealed into place, or before the final top seal is closed around a pre-tacked spout. This method utilizes rotary grippers or inline walking-beam systems. These machines offer more flexibility, accommodating corner spouts, but require precise mechanical handling. During the liquid injection phase, the filling machinery must manage bottom gusset expansion. The nozzle insertion angle and product flow rate must force the gusset open uniformly, ensuring the pouch remains upright and stable on the conveyor.
Filling Machinery Compatibility Matrix | |||
Filling Method | Equipment Type | Optimal Spout Position | Gusset Expansion Control |
|---|---|---|---|
Through-the-Spout | Automated Rail System | Center-Top | Relies on liquid weight and gravity |
Through-the-Pouch | Rotary Gripper | Corner or Center | Mechanical grippers and air blasts |
Through-the-Pouch | Inline Walking Beam | Corner or Center | Diving nozzles and controlled flow rates |
Valve/Tap Insertion | Web-fed Form-Fill-Seal | Front-Face | Pre-formed gusset tracking |
Liquid rheology fundamentally alters how a product exits the pouch. Newtonian fluids, like water or clear juices, flow predictably and benefit from symmetrical dispensing angles. Non-Newtonian fluids, such as heavy lotions, gels, or liquids containing particulates, exhibit variable shear rates and require gravity assistance to maintain a steady flow out of the nozzle.
The spout angle interacts directly with these flow dynamics. A center spout forces the user to invert the pouch significantly to evacuate high-viscosity products, often leaving residual material trapped in the upper corners. Corner placement alters the evacuation baseline, allowing the heavy liquid to funnel naturally toward the lowest dispensing point when tilted, maximizing product recovery. For products exceeding 5,000 centipoise (cP), corner placement is standard practice to prevent user frustration.
Structural integrity depends on how the weight of the rigid spout and cap interacts with the flexible film and bottom gusset. When empty, a heavy spout can cause the pouch to fold or collapse if the film thickness is insufficient. During the filling process, the shifting center of gravity can cause instability if the gusset does not deploy correctly.
Center-top spouts distribute mass symmetrically. This even distribution prevents the pouch from tipping over on retail shelves or during transit. As the consumer uses the product, the symmetrical weight reduction maintains the pouch's upright stability until it is nearly empty. If a corner spout is used on a tall, narrow pouch, the asymmetrical weight can cause the package to lean, requiring a wider bottom gusset to compensate.
Spout insertion physically alters the available printable surface area and dictates the die-line boundaries. The thermal welding process requires dedicated space where the rigid plastic bonds to the flexible film. Designers must account for seal-jaw safety zones around the spout insertion point. These zones are typically 15mm to 20mm wide.
Placing artwork, barcodes, or mandatory compliance text within these safety zones guarantees distortion. The heat and pressure from the sealing jaws will warp the printed layer or melt the surface ink. Center spouts interrupt the top continuous edge, while corner spouts truncate one of the upper visual quadrants, requiring strategic layout adjustments to maintain brand visibility and regulatory compliance.

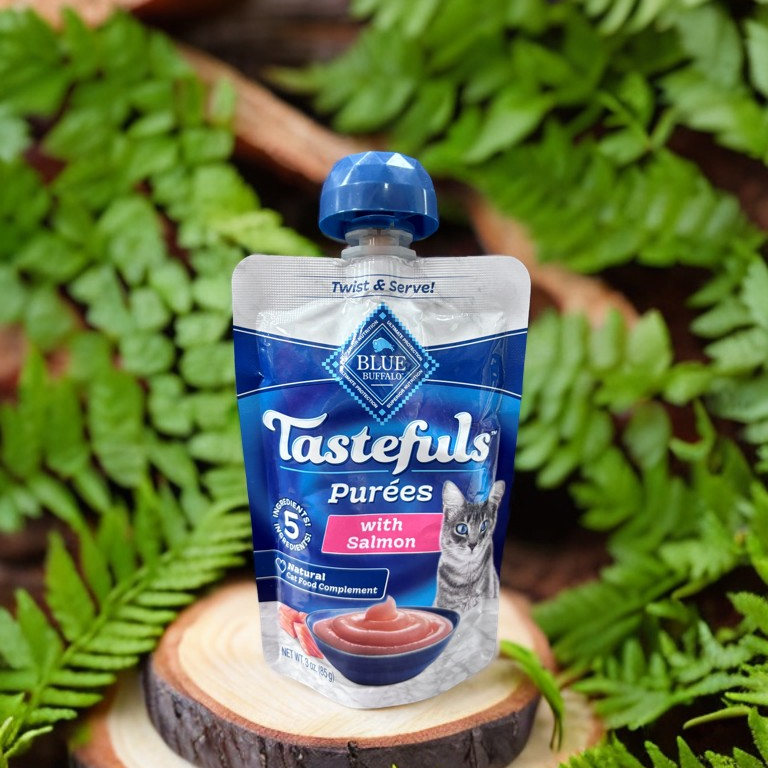

A center-top spout distributes the weight of the closure evenly across the top horizontal seam. This structural mechanics approach prevents the pouch from leaning or tipping when resting on its expanded bottom gusset. The balanced load ensures the package maintains a uniform profile on the shelf, which is critical for retail displays.
The fluid dynamics of a center pour require the user to tilt the entire pouch symmetrically. The liquid flows evenly from the center axis, providing a predictable and controlled stream. This symmetrical dispensing is highly intuitive for consumers accustomed to traditional rigid bottles. The center position also allows for maximum headspace management during the sealing process, reducing the risk of product splashing onto the seal area.
Center-top placement is the industry standard for Drink Spout Pouches. Ready-to-drink beverages, fruit juices, protein waters, liquid seasonings, and thin sauces utilize this configuration extensively. The low viscosity of these products allows them to flow freely without requiring extreme inversion angles.
For single-serve applications, the ergonomic advantages are clear. Consumers can drink directly from the spout with minimal effort. The center position aligns naturally with the mouth, making it the superior choice for on-the-go beverage consumption. The symmetrical design also fits easily into standard vehicle cup holders when the bottom gusset is properly dimensioned.
Symmetrical top-sealing represents the most standardized and reliable thermal sealing process in the flexible packaging industry. The straight, horizontal sealing jaws apply uniform pressure and heat across the entire top edge, including the spout flanges. This reduces the complexity of the machine setup.
Align the pouch web with the horizontal sealing jaws.
Insert the spout centrally using automated pick-and-place arms.
Apply primary heat to tack the spout to the inner sealant layer.
Apply secondary heat and pressure to finalize the hermetic seal.
Engage cooling bars to set the polymer structure and prevent warping.
This standardized approach significantly lowers the risk of misalignment defects. Compared to angled corner seals, the straight-line application minimizes the variables that lead to micro-leaks or weak bonds at the transition points between the film and the rigid plastic.

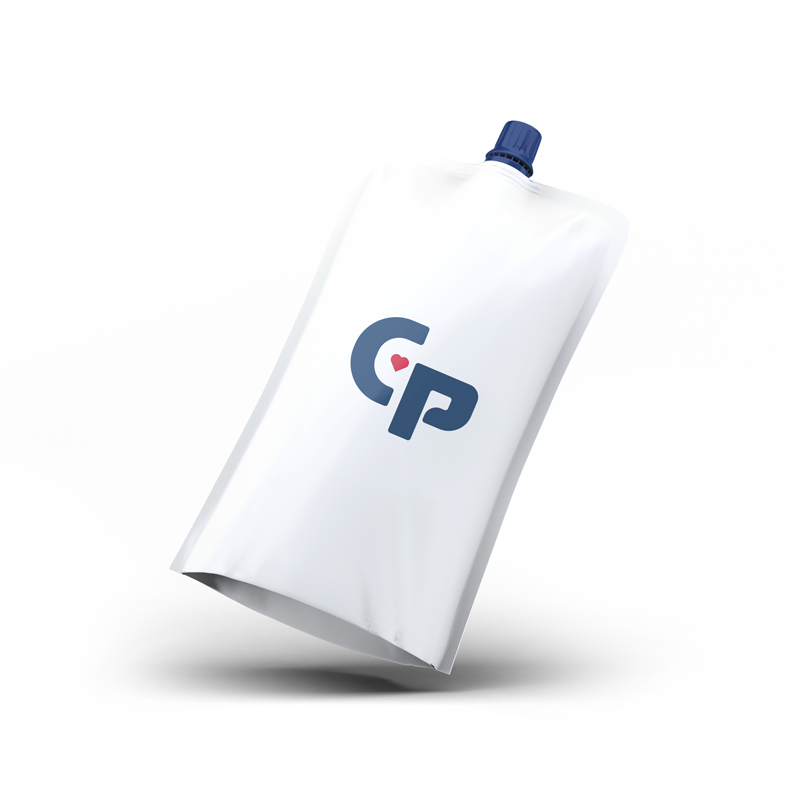

The physics of the corner spout, typically positioned at a precise 45-degree angle, allow users to dispense product without fully inverting the pouch. This directional pouring mechanism is highly efficient for heavy or thick materials. The user simply tilts the package, and gravity does the rest.
Corner placement drastically reduces residual product waste. High-viscosity liquids, such as industrial lotions, heavy culinary sauces, and concentrated laundry detergents, slide down the internal slope of the pouch directly into the spout. This gravity-assisted funneling ensures maximum evacuation. In tests with 10,000 cP liquids, corner spouts yield up to 15% more product recovery compared to center-top configurations.
Capacities ranging from 1L to 5L present significant ergonomic challenges. Lifting and fully inverting a heavy, flexible container with a center spout is difficult and often leads to spills. Corner spouts solve this by allowing the user to rest the bottom of the pouch on a surface while tipping the top corner downward.
This configuration is dominant in the chemical, agricultural, and household cleaning sectors. Large-volume refill packs for hand soaps or motor oils rely on the corner spout to provide a controlled, directional pour into smaller secondary containers. The corner position also leaves the entire top edge available for a reinforced carrying handle, which is mandatory for packages exceeding 2 liters.
Sealing a rigid spout into an angled corner introduces specific technical challenges. The sealing jaws must match the exact 45-degree angle, and the pouch must be presented to the jaws with absolute precision. The web tension must be tightly controlled to prevent the film from skewing before the jaws close.
If the spout is misaligned by even a few millimeters during the heat-sealing phase, the pressure distribution becomes uneven. This misalignment creates weak seals or micro-leaks at the sharp transition points, compromising the entire package. Specialized equipment, such as custom-machined angled seal bars and rigorous optical calibration, are required to maintain high production yields with corner spouts.
Front-face positioning involves installing the spout directly onto the flat front panel of the pouch, rather than integrating it into the perimeter seam. This setup transforms the pouch into a stationary dispenser. The user does not need to lift or tilt the package to access the product.
This position is evaluated primarily for bag-in-box applications or large stand-up pouches designed to sit on a shelf or inside a refrigerator. Bulk water, boxed wine, and catering-volume sauces use front-face spouts to allow gravity-fed dispensing without moving the heavy container. The internal pressure of the liquid pushes the product out when the valve is opened.
Front-face placement is highly compatible with specialized dispensing hardware. Push-button taps, rotary butterfly valves, and aerated spouts require a flat, stable surface for mounting and operation. Perimeter seams cannot support the mechanical stress of operating these valves.
The front panel provides the necessary surface area to weld the wide flanges of these heavy-duty valves. This integration allows for precise portion control and prevents oxygen ingress during dispensing. The gland is typically welded to the film using ultrasonic or thermal platen sealing before the pouch is formed, ensuring a massive, secure bond area.
The primary logistical drawback of front-face spouts is protrusion. The spout extends outward from the flexible panel, complicating secondary packaging. Cartoning requires custom die-cut inserts to protect the valve and prevent it from bearing the weight of stacked boxes.
During palletized transit, the protruding spout creates a focal point for friction and pressure. This increases the risk of puncture or abrasion to adjacent pouches. Engineers must specify heavier corrugated outer boxes and strict pallet wrapping protocols to mitigate these transit trade-offs. Vibration testing is mandatory to ensure the valve does not rub through the film of the neighboring pouch.
Selecting the correct inner diameter is just as critical as the position. A standard framework dictates 8mm to 10mm diameters for thin liquids and beverages. For gels, pastes, and liquids containing particulates, diameters of 16mm, 22mm, or larger are necessary to prevent clogging.
Spout Diameter vs. Viscosity Guidelines | |||
Product Type | Approximate Viscosity (cP) | Recommended Inner Diameter | Optimal Position |
|---|---|---|---|
Water / Clear Juice | 1 - 10 | 8.5mm - 10mm | Center-Top |
Motor Oil / Syrup | 1,000 - 3,000 | 12mm - 16mm | Corner |
Heavy Lotion / Gel | 5,000 - 10,000 | 16mm - 22mm | Corner |
Particulate Sauces | 10,000+ | 22mm - 33mm | Corner or Front-Face |
A smaller diameter spout balances liquid flow velocity, preventing glugging. It facilitates a smoother pour by allowing air to enter the pouch at a controlled rate, avoiding air-pocket blockages. However, installing a large diameter spout on a corner position can compromise the structural rigidity of the pouch corner, requiring careful film selection and reinforced seal profiles.
There is a direct correlation between the size and weight of the spout and the required mil-thickness of the laminated film. Heavy spouts paired with thin films will cause the pouch to droop, creating stress fractures at the seal junction. The mechanical load increases exponentially during transit vibration.
Engineers must specify robust laminate structures to support larger spouts. A standard structure for a 22mm corner spout might include a 48-gauge PET outer layer, a nylon core for puncture resistance, and a heavy 4-mil LLDPE sealant web. This ensures the film can withstand the mechanical stress of holding the rigid plastic without stretching or tearing over time.
Bonding flexible polyethylene or polypropylene sealant layers to rigid HDPE or PP spouts requires exact thermal tolerances. The sealing jaws must apply specific temperatures, pressure, and dwell time to melt the materials together without causing degradation. The rigid spout acts as a heat sink, requiring higher temperatures than standard fin seals.
Insufficient heat or dwell time results in incomplete bonding, while excessive heat causes the film to thin out and become brittle at the edge of the spout flange. Calibrating these parameters is the most critical step in the manufacturing setup. Operators must monitor jaw temperatures constantly, as a drop of even 5 degrees Celsius can result in a batch of leakers.
To catch misalignment and sealing failures, production lines must implement strict quality control protocols. Relying on visual checks alone is insufficient for high-speed lines.
Execute burst testing every 30 minutes to verify overall seal strength under pneumatic pressure.
Perform vacuum leak testing by submerging the pouch in water under negative pressure to identify microscopic leaks.
Conduct tensile testing on the spout to ensure it meets the required pull-force specifications.
Utilize automated vision systems to detect channel leakers at the exact junction where the film wraps over the edge of the spout flange.
Visual inspection is also mandatory to detect gross misalignment. If the spout is skewed, the cap will not sit flush, causing issues downstream in the automated capping and torquing stations.
The spout position alters the kinetic dynamics of the pouch when dropped. To ensure the position does not create a focal point for failure during shipping, rigorous transit testing is required before commercialization.
Engineering teams should execute specific ASTM or ISTA drop testing protocols. These tests simulate the impacts of parcel delivery and pallet handling. A standard ISTA 1A test involves dropping the filled pouch from specific heights onto its base, faces, and corners. The goal is to verify that the shock waves generated by a drop do not rupture the spout-film junction or cause the cap to dislodge.
Request unprinted, spouted prototypes for physical drop testing and evacuation trials.
Run trial batches on your specific filling lines to verify equipment compatibility and seal integrity before committing to a final die-line.
Audit your secondary packaging to ensure corrugated boxes can accommodate the specific spout position without causing transit damage.
Establish strict thermal sealing parameters and QA protocols with your packaging supplier.
A: The standard inner diameter for beverage applications ranges from 8.5mm to 10mm. This size provides optimal flow control, ensures smooth pouring without glugging, and complies with strict choking hazard regulations for consumer packaging.
A: Through-the-spout rail filling requires center-top placement for balance. Through-the-pouch filling can accommodate corner spouts before the final top seal is made. In both methods, the filling line must properly expand the bottom gusset to keep the pouch standing upright during injection.
A: Corner spouts introduce a 45-degree asymmetrical angle. Applying uniform thermal pressure across this angled transition is mechanically complex. If the machinery is misaligned, it creates micro-channels at the film-to-spout junction, leading to leaks.
A: Yes, but it requires specialized hole-punching and sealing equipment. Adding a front-face spout alters the center of gravity significantly, which often requires engineering a wider bottom gusset to prevent the pouch from tipping forward.
A: Choose a center spout for low-viscosity liquids, small volumes, and symmetrical pouring. Select a corner spout for high-viscosity products, large volumes over 1L, and applications requiring controlled, directional pouring without fully inverting the pouch.
A: The physical position of the spout does not directly impact shelf life. However, the integrity of the thermal seal around the chosen position dictates the oxygen and moisture barrier performance, which ultimately determines product longevity.
