Flexible packaging presents a constant technical tension. You must preserve product freshness, prevent package rupture, and deliver premium consumer convenience. Products that actively off-gas, like freshly roasted coffee or fermented foods, risk bursting their packaging if internal pressure builds up. At the same time, oxygen exposure rapidly degrades flavor profiles and overall shelf life. Consumers demand reliable resealability. This makes standard non-vented, non-zippered pouches obsolete for premium product lines. Understanding the mechanical operation of closures and vents helps packaging engineers solve these issues. We will break down how one-way degassing valves and advanced zipper systems operate within quad seal bags. This provides the evaluation criteria needed to specify the correct closures. You can ensure your production lines run efficiently while maintaining absolute product integrity.
Valve Mechanics: One-way degassing valves utilize a precision rubber disc and sealant fluid to release internal pressure (CO2) at specific thresholds without allowing ambient oxygen to enter the pouch.
Zipper Integration: Implementing zippers in quad seal and flat bottom bags requires specialized configurations (like pocket zippers or hook-and-loop) to navigate the four-corner gusset structure without compromising the hermetic seal.
Production Impact: Adding valves and zippers alters headspace requirements, fill volumes, and sealing temperatures, requiring alignment between packaging specifications and automated filling equipment capabilities.
ROI & Application: The combined cost of valves and zippers is justified in high-margin, oxygen-sensitive categories (coffee, premium pet food, specialty powders) where extended shelf life and user experience directly drive repeat purchases.

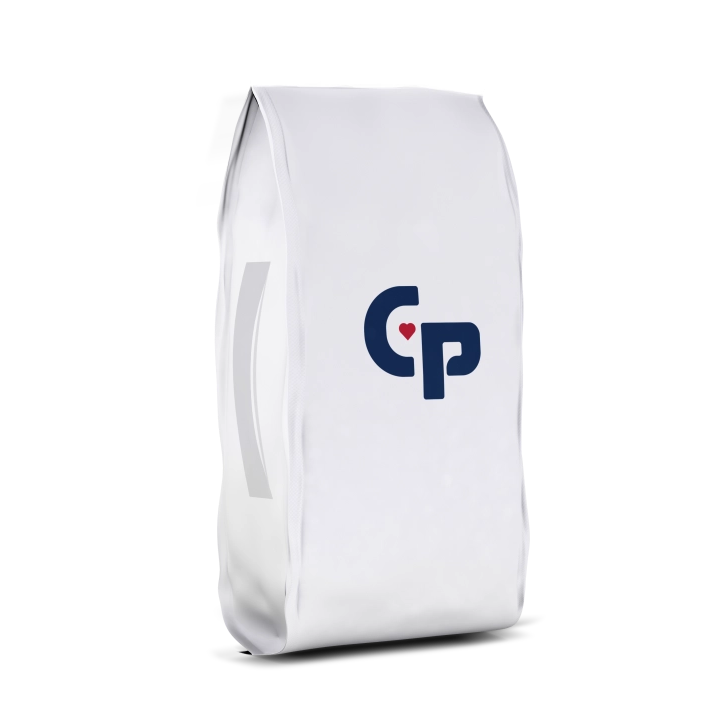

The anatomy of a quad seal design relies on four reinforced corner seals and deep side gussets. This structural rigidity allows the bag to stand unassisted on retail shelves. The vertical seals act as pillars. They prevent the package from slumping or deforming as the product settles during transit. When you fill a standard pouch, the bottom often rounds out, causing the bag to tip over. The four-corner seal architecture forces the film into a rectangular footprint. This distributes the product weight evenly across the base.
When comparing traditional formats to Flat Bottom Bags with Zippers, the structural differences become apparent on the filling line. A true flat bottom format maximizes billboard space and volumetric efficiency. It offers superior shelf stability, making it the industry standard for premium retail displays. The fold-and-seal configuration creates a completely flat base, unlike the folded bottom of a standard gusseted bag. This flat base allows the bag to sit flush against the shelf. It eliminates the "rocking" effect seen in standard stand-up pouches.
The inherent engineering challenge lies in integrating functional components into this rigid, multi-layered film structure. Adding valves and resealable tracks without creating weak points or micro-leaks requires precise thermal sealing. The transition zones where zippers meet the four corner seals are particularly vulnerable to channel leaks if not engineered correctly. You must manage the film thickness variations. The side gussets introduce four layers of film, while the front and back panels only have two. When you add a zipper flange into this mix, the sealing jaws must compress up to six or eight layers of material simultaneously.
Structural Feature | Standard Stand-Up Pouch | Quad Seal Bag | Flat Bottom Bag |
|---|---|---|---|
Base Configuration | Folded bottom gusset | Folded side gussets | True flat box pouch base |
Vertical Seals | Two side seals | Four corner seals | Four corner seals |
Shelf Stability | Moderate (prone to tipping) | High (rigid corners) | Maximum (flush base) |
Zipper Integration Difficulty | Low (two-layer seal) | High (gusset interference) | High (requires pocket zipper) |
Volumetric Efficiency | Average | Good | Excellent |
Packaging engineers must account for these thickness variations when designing the heat-sealing profiles. If the sealing temperature is too low, the inner sealant layers will not fuse around the zipper flanges. If the temperature is too high, the outer PET or BOPP layers will distort or burn through. Achieving the perfect hermetic seal requires custom-machined sealing bars that accommodate the exact profile of the chosen zipper.
Certain products require active pressure management to prevent ballooning and catastrophic package failure. Coffee releases significant amounts of carbon dioxide post-roast. A dark roast can release up to 10 liters of CO2 per kilogram over a few weeks. Without a release mechanism, this off-gassing expands the pouch until the seals eventually rupture. Fermented foods like sauerkraut or kimchi also produce continuous gas during distribution. You cannot simply punch a hole in the bag, because ambient oxygen will enter and oxidize the product, destroying the flavor profile and shelf life.
A one-way degassing valve acts as a miniature pressure relief system. It consists of several precision-engineered components working together to maintain the internal atmosphere.
Base Plate: The rigid plastic foundation that heat-seals directly to the interior or exterior of the flexible film.
Rubber/Silicone Disc: The flexible diaphragm that physically blocks the vent hole.
Sealant Fluid: A microscopic layer of viscous fluid, usually food-grade silicone oil, applied between the base plate and the rubber disc.
Filter Layer: A non-woven mesh applied over the internal face of the valve to block fine particulates.
The sealant fluid creates an airtight surface tension against the rubber disc. This surface tension is the actual barrier against oxygen ingress. For dusty products like ground coffee or protein powder, the filter layer prevents fine particulates from migrating into the silicone oil. If dust mixes with the oil, it breaks the surface tension, causing the valve to leak oxygen back into the bag.
The valve operates on a strict pressure differential threshold. Typical opening pressure ranges fall between 2 and 10 millibars (mbar). Internal gas buildup forces the rubber disc open to vent the carbon dioxide. The gas pushes through the silicone oil layer, breaking the surface tension momentarily. Once the internal pressure drops below the threshold, ambient atmospheric pressure forces the disc shut. The silicone oil immediately re-establishes the airtight seal. This mechanism maintains a strictly oxygen-free internal environment.
Evaluating interior versus exterior application depends on your machinery and aesthetic goals. Interior valves remain hidden behind a small pinhole punched in the film, offering a cleaner exterior look. Exterior valves sit on the outside of the bag, which is sometimes easier to apply on certain forming webs. Particulate filters are absolutely necessary for dusty products to maintain valve function. Valve placement also impacts how the bags stack in secondary packaging. If you place the valve too close to the top seal, it can interfere with the sealing jaws. If you place it too low, the product might bury the valve, restricting airflow.
Press-to-Close (PTC) zippers feature a standard interlocking plastic track. While common, PTC zippers face severe limitations in quad seal formats. Side-gusset interference makes them difficult to open and close smoothly. The force required to close them can frustrate consumers. When a consumer tries to pinch a standard PTC zipper closed on a quad seal bag, the folded side gussets resist the pressure. This often results in a partially closed bag, leading to product staling.
Pocket zippers function by hiding the zipper track behind a tear-away front panel. This is the preferred method for flat bottom bags. It allows for easy top-filling on automated lines without zipper contamination. The filling equipment drops the product directly into the open top of the bag, bypassing the zipper entirely. Consumers simply tear the front tab to access the resealable track. This design keeps the zipper tracks completely clean during the filling process, ensuring a perfect seal every time.
Hook-and-loop closures utilize micro-hook alignment rather than interlocking tracks. This technology is superior for granular or dusty products. Protein powder, flour, and pet food typically clog standard PTC zipper tracks. The fine particles get trapped in the female groove of the zipper, preventing the male profile from locking in. Hook-and-loop closures easily push through particulates to secure the seal. The hooks engage with the loops even if the surface is covered in dust.
Slider zippers offer high convenience but require structural reinforcement. The mechanical action of the slider plow opening and closing the tracks demands a stiffer top seal. This prevents the slider from tearing away from the film during repeated use. Slider zippers also require a wider top flange, which increases the overall height of the bag and consumes more film per unit.
Integrating zippers into side gussets introduces the zipper crushing challenge. Specialized ultrasonic or high-heat sealing jaws must flatten the ends of the zipper profiles. They do this exactly where the zipper intersects with the side gussets. This critical step prevents micro-channel leaks at the transition points. If you do not crush the zipper ends, the rigid plastic tracks will create a gap in the side seal. Oxygen and moisture will bypass the zipper entirely through these micro-channels. Packaging converters use ultrasonic anvils to melt and flatten the zipper ends before the final bag making process.
Placing a valve and a zipper on the same upper quadrant presents a geometric challenge. You must navigate space constraints and gusset interference without overlapping heat-seal zones. Overlapping these zones degrades the film and compromises the hermetic barrier. The heat required to seal the zipper flange will distort the base plate of the degassing valve if they are placed too close together. You must maintain a minimum distance of 15 to 20 millimeters between the bottom of the zipper flange and the top edge of the valve.
Adding these components impacts fill volume and headspace. You must calculate the dead space required above the fill line. This accommodates the zipper track and the valve mechanism. Proper calculation prevents product contamination during the final top-seal process. If the product fill level is too high, the sealing jaws will crush the product into the zipper track or the top seal area. This causes seal failure and machine downtime. You generally need to add 1.5 to 2 inches of extra height to the bag design to accommodate both a pocket zipper and a degassing valve.
Maintaining hermetic seals requires modified heat-sealing jaws. These jaws apply uniform pressure across varying thicknesses. The equipment must seamlessly seal the base film, the thick zipper flanges, and the folded side gussets simultaneously. Standard flat sealing bars will not work. You need transition jaws with machined reliefs that match the exact profile of the gussets and the zipper. These reliefs allow the jaws to apply equal pressure to the two-layer sections and the four-layer sections without crushing the film.
Thermal profiling becomes highly complex for mono-material bags. Integrating PE-based zippers and valves into 100% recyclable structures requires precise temperature control. You must prevent burn-through during high-speed sealing while ensuring the thicker components melt sufficiently. Traditional mixed-material structures use a high-heat resistant outer layer like PET to protect the film from the sealing jaws. Mono-material PE structures lack this heat-resistant layer. You must use lower sealing temperatures and longer dwell times to achieve a hermetic seal without melting the outside of the bag.
Aligning product characteristics with the appropriate closure requires a features-to-outcomes matrix. High off-gassing rates demand precision valves. Moisture sensitivity dictates high-barrier zipper flanges. Particulate size determines whether you need a filtered valve or a hook-and-loop zipper. You cannot use a one-size-fits-all approach when specifying closures for Quad Seal Bags.
Product Type | Off-Gassing Level | Particulate Size | Recommended Valve | Recommended Zipper |
|---|---|---|---|---|
Whole Bean Coffee | High | Large | Standard One-Way Valve | Pocket Zipper |
Ground Coffee | High | Fine/Dusty | Filtered One-Way Valve | Pocket Zipper |
Protein Powder | None | Fine/Dusty | No Valve Required | Hook-and-Loop |
Premium Pet Food | Low/None | Large/Oily | No Valve Required | Slider or Hook-and-Loop |
Granola/Snacks | None | Medium | No Valve Required | Standard PTC or Pocket |
Assess your current Form-Fill-Seal machinery capabilities. Determine if your equipment can handle pre-zippered, pre-valved pouches. You may need equipment upgrades, such as custom sealing bars, to process these advanced pouches effectively. If you run a Vertical Form-Fill-Seal (VFFS) machine, applying zippers and valves inline requires specialized applicator modules. These modules punch the vent hole, heat-seal the valve, and apply the zipper track to the flat web before it forms the tube. This adds significant complexity and length to the VFFS footprint.
Evaluate the availability of recyclable or compostable components. Meeting sustainability mandates without sacrificing barrier performance is challenging. Ensure your selected valves and zippers match the recyclability classification of the main pouch film. If you use a PE-based mono-material pouch, you must specify PE-based valves and zippers. If you use a compostable PLA film, the valve base plate, rubber disc, and zipper track must all be certified compostable. Mixing materials will render the entire package unrecyclable.
Implement essential ASTM testing protocols for verification. Use ASTM F2097 for leak testing and ASTM F88 for seal strength. Bubble-leak testing is mandatory for verifying valve integrity and ensuring no oxygen ingress occurs. You place the sealed bag in a vacuum chamber filled with water. As you draw a vacuum, the bag expands. If the valve is functioning correctly, it will release a steady stream of bubbles at the specified pressure threshold. If bubbles escape from the side seals or the zipper transition zones, you have a micro-channel leak that requires immediate jaw adjustment.
Valve failure leads directly to oxygen ingress and product spoilage. Causes include the silicone oil drying out or particulates clogging the rubber disc. Mitigate these risks through rigorous bubble-leak testing and burst testing during production runs. You should test a sample from every roll of film or every shift. Ensure your packaging supplier uses high-quality silicone oil that will not evaporate or degrade over the product's intended shelf life.
Zipper misalignment causes micro-channel leaks where the track meets the side gusset seals. Address this risk using transition-seal technology. Implement routine burst-strength quality assurance protocols to catch alignment issues early. The transition seal is the critical junction where the zipper flange ends and the side gusset begins. If the zipper is cut too short, a gap forms. If it is cut too long, it bunches up and creates a channel. Your converter must maintain strict tolerances on the zipper cut length.
Pre-applied zippers can pop open during high-speed vertical form-fill-seal operations. The internal pressure of the dropping product forces the track apart. Prevent this by specifying high-retention zipper profiles and optimizing the drop height on your filling line. When a kilogram of dense product drops into the formed pouch, the air inside is displaced upward. This sudden burst of air pressure can blow the zipper open from the inside. High-retention zippers require more force to open from the inside than from the outside, mitigating this risk.
Specifying custom valve placements and proprietary zipper profiles impacts your supply chain. These customizations often extend packaging lead times. They may also require higher minimum order quantities from your flexible packaging converter. Standard pouches might have a lead time of four weeks, while custom-valved and zippered pouches can take eight to twelve weeks. Plan your inventory cycles accordingly and order safety stock to prevent line shutdowns.
Request physical samples of flat bottom bags with pocket zippers and hook-and-loop closures to evaluate the mechanical action with your specific product.
Conduct accelerated shelf-life testing using bags equipped with filtered degassing valves to verify oxygen barrier performance over time.
Audit your automated filling line sealing jaws to ensure they feature the necessary reliefs to handle zipper transition zones without crushing the film.
Implement a strict bubble-leak testing protocol on your production floor to verify valve activation pressures and catch micro-channel leaks early.
A: No. Degassing valves are only required for products that actively release gases after packaging, such as freshly roasted coffee or certain fermented items. Products that do not off-gas do not need a valve.
A: A pocket zipper is concealed behind a tear-away front panel on the bag. The manufacturer fills the bag from the top without the zipper interfering. The consumer tears the front tab to reveal and use the resealable track.
A: Standard degassing valves are designed for dry products and gases. Liquids can interfere with the silicone oil and rubber disc mechanism, causing the valve to leak or fail entirely. Specialized venting solutions are required for liquids.
A: A standard zipper uses interlocking plastic tracks that must align perfectly to seal. A hook-and-loop closure uses micro-hooks that engage across a wider surface area. Hook-and-loop closures easily push through dust and particles, making them better for powders.
A: They can be, provided the entire package is engineered as a mono-material structure. If the bag film, zipper, and valve are all made from the same polymer family, the pouch is generally recyclable at store drop-off locations.
A: Manufacturers use bubble-leak testing and burst testing. The bag is submerged in water inside a vacuum chamber. If bubbles escape from the valve at the correct pressure threshold, and no water enters, the valve is functioning correctly.
