Packaging failures and production bottlenecks rarely stem from material defects. They usually happen because someone miscalculated the dimensions during the specification phase. Selecting the wrong size for quad seal bags compromises structural integrity, leads to seal contamination, creates palletization inefficiencies, and ruins your retail presentation. You cannot guess these measurements. A systematic, evidence-based approach to calculating volume, gusset depth, and sealing allowances is required to specify packaging that performs reliably on the filling line and the retail shelf. You need to understand the exact volumetric displacement of your product, the mechanical limits of your sealing jaws, and the physical behavior of the film under load. This guide breaks down the exact engineering formulas and operational checks required to size your packaging correctly the first time, preventing costly line stoppages and wasted roll stock.
Product density dictates volume requirements; weight-based sizing is insufficient without calculating the specific volumetric footprint of the product.
A mandatory 2-3 inch allowance must be added to the product length to accommodate heat sealing, headspace, and prevent seal blowouts.
Gusset sizing directly impacts the architectural shape of the bag, determining both its self-standing stability and its front-facing retail profile.
The structural integrity of quad seal bags relies on reaching a minimum fill level threshold to prevent sagging and structural collapse.
Bag dimensions must be cross-referenced with the jaw specifications of automated filling machinery to prevent costly equipment retrofits.
The defining characteristic of the quad seal format is its four crisp, reinforced corners. Unlike standard stand-up pouches that taper at the top or pillow bags that lay flat, the four corner seals create a rigid, box-like structure. This architectural shape allows the packaging to stand upright with exceptional stability. Side gusset bags share a similar profile but lack the reinforced corner seals, making them prone to bulging or losing their shape when filled with heavy materials. When you put a side gusset bag on a shelf, the product weight often forces the bottom to round out, causing the bag to lean or fall over. The reinforced corners of a quad seal design act like structural pillars, locking the film into a square footprint.
Volume utilization differs significantly across these formats due to the chimney effect. The parallel side walls of a quad seal structure maintain a consistent internal volume from the base to the top seal. This configuration holds heavier products securely without the top-heavy instability often seen in standard stand-up pouches. The uniform shape also maximizes the printable surface area on all four panels, eliminating the distorted branding common on bulging pillow bags. You get four distinct billboards for graphics, and the bag actually looks like a solid brick on the shelf.
Packaging Format | Structural Stability | Volume Utilization | Best Application |
|---|---|---|---|
Quad Seal | High (Reinforced corners) | Excellent (Consistent width) | Coffee, Pet Food, Heavy Powders |
Stand-Up Pouch | Medium (Tapered top) | Moderate (Loses volume at top) | Snacks, Light Granules |
Side Gusset | Low to Medium (Prone to bulging) | Good (Expandable sides) | Lightweight bulk items |
The physics of the quad seal format demand a specific internal tension to maintain its architectural shape. A minimum fill level, typically between 70% and 80% of the total internal volume, is required. The product inside acts as the structural core. Without sufficient volume pressing against the side gussets and front panels, the bag cannot maintain its rigidity. The film relies on the outward pressure of the contents to keep the corner seals taut.
Underfilling introduces severe operational and visual risks. A bag filled below the 70% threshold will sag, fold, or collapse entirely on the retail shelf. This compromises shelf-presence and leads to creased branding surfaces. On the operational side, underfilled bags create unstable pallet stacking. The lack of internal tension causes the bags to shift and compress unevenly under the weight of upper layers, leading to leaning pallets and damaged goods during transit.
This packaging format excels when handling heavier, bulkier items such as whole bean coffee, pet food, and agricultural products. The reinforced corners distribute the product weight evenly across the base and side walls, preventing the bottom seal failures that frequently occur with flat pouches under heavy loads. The rigid structure also protects fragile products from crushing during transit. If you are packing three kilograms of dense fertilizer, a standard pouch will tear at the bottom gusset. The quad seal distributes that kinetic energy across four vertical seams.
For high-volume SKUs requiring maximum bottom-heavy stability, operations often transition from standard quad seal packaging to 1–5 kg Flat Bottom Bags. This transition provides a completely flat footprint, further enhancing vertical stability and allowing for efficient, block-like stacking on pallets. The flat bottom acts as a solid foundation, completely eliminating the slight rocking motion you sometimes get with folded bottom seals.
Standard industry width ranges for this format typically fall between 3.15 inches and 7.87 inches, with length parameters stretching from 6 inches to 19 inches. These baseline reference points accommodate the vast majority of retail applications. Selecting dimensions outside these standard ranges often requires custom tooling, specialized forming collars, and extended lead times. If you try to run a 10-inch wide bag on a standard VFFS machine, you will likely exceed the maximum film web width.
The engineering formula for calculating total bag length is strict. You must calculate Product Height + Headspace + 2 to 3 inches for the top sealing and opening area. The product height is determined by the volumetric displacement of the specific product. The headspace allows for air displacement during the sealing process and protects the product from the heat jaws. If you ignore this formula, you will end up with bags that cannot be sealed.
Determine the exact bulk density of your product in grams per cubic centimeter.
Calculate the total volume required for your target net weight.
Select a standard face width that fits your retail shelving requirements.
Calculate the required length to accommodate the volume, adding the mandatory 3-inch sealing allowance.
Minimizing the sealing allowance to save material costs introduces severe operational risks. Insufficient sealing area leads to product getting caught in the seal zone, which compromises the barrier properties and causes immediate leaks. Inadequate distance between the product and the sealing jaws increases the risk of heat-jaw burn-through and product degradation. When 400-degree sealing jaws clamp down on a bag that is too short, the radiant heat will melt the top layer of your product, ruining the batch and fouling your equipment.
Standard gusset ranges typically span from 2 inches to 6 inches. Gusset depth exponentially increases internal volume without altering the bag's face width. This allows brands to increase product weight without changing the primary display panel dimensions, maintaining a consistent facing on the retail shelf. You can double the capacity of a bag simply by expanding the side gussets, without needing to redesign your master shipping cartons for a wider face.
Selecting the optimal gusset depth involves technical trade-offs. A deeper gusset provides increased volume capacity and a deeper shelf footprint, which enhances standing stability. However, it reduces the available width for the front panel. Conversely, a wider front panel increases the primary display area but reduces the shelf depth, potentially compromising the bag's ability to stand upright if the product is dense and settles heavily at the base.
Translating product bulk density into precise, reproducible bag dimensions requires a strict volumetric formula. Density is measured in grams per cubic centimeter (g/cm³) or pounds per cubic inch (lbs/in³). You must divide the target net weight by the product's bulk density to determine the required internal volume, then size the bag to accommodate that specific volume plus necessary headspace. Weight tells you nothing about how much space the product takes up.
Comparative packaging examples highlight the necessity of this calculation. A 1 kg bag of dense, finely ground powder occupies a relatively small volume and requires significantly smaller dimensions. In contrast, a 1 kg bag of low-density, extruded pet food requires a massive internal volume. Using the same bag dimensions for both products based solely on the 1 kg target weight will result in massive overfilling for the pet food and severe underfilling for the powder. The powder bag will look empty and collapse, while the pet food bag will overflow before it even reaches the sealing station.

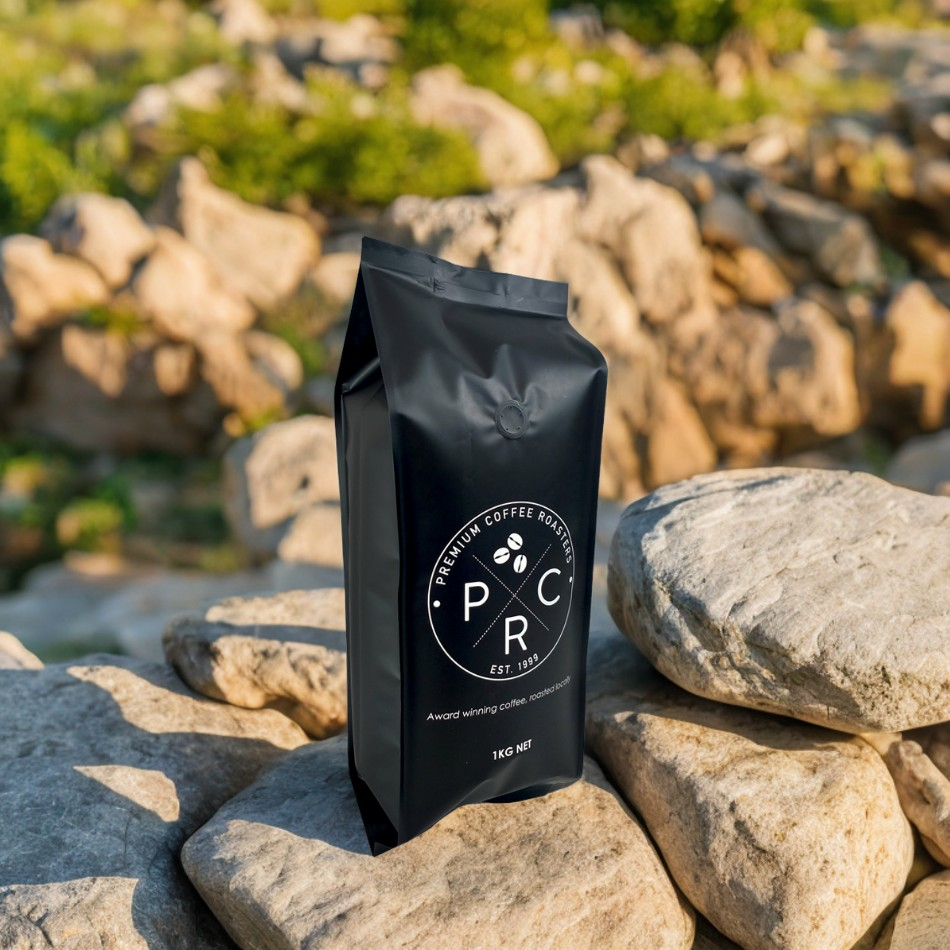

Standard dimensional configurations for retail coffee packaging follow established industry norms based on the bulk density of roasted beans. A 250g capacity typically utilizes a narrower width and shorter length, while 500g and 1kg capacities scale up primarily in length and gusset depth to maintain a manageable front profile. These dimensions are calibrated to fit standard retail shelving heights. If you make a 1kg coffee bag too wide, it takes up too much horizontal shelf space, and retailers will reject it.
The inclusion of one-way degassing valves alters the necessary bag length and structural expansion. Freshly roasted coffee releases significant amounts of carbon dioxide. The bag must include adequate headspace to allow this post-roast off-gassing to reach the valve without forcing the product into the valve mechanism. The dimensions must account for this required void space to prevent valve clogging and subsequent bag rupture. If the beans press directly against the internal filter of the valve, the oils will blind the membrane, trapping the gas and causing the bag to inflate like a balloon.
Heavy, multi-kilogram retail and industrial applications require specific structural and dimensional configurations. The packaging must withstand significant internal pressure and external handling stress. The dimensions are typically wider and feature deeper gussets to lower the center of gravity, preventing the bag from tipping over during transit or on the shelf. A tall, narrow bag holding 5kg of dog food is a tipping hazard and a nightmare to palletize.
When comparing footprint efficiency, 1–5 kg Flat Bottom Bags offer superior vertical stability and material consumption metrics compared to traditional large-format quad seal bags. The flat bottom design allows the bag to sit flush against the shelf, maximizing volume utilization within a smaller footprint and reducing the total square footage of film required per kilogram of product. You get a better-looking package that uses less plastic and stands perfectly straight.
Material thickness and barrier laminates must scale proportionally with bag dimensions. A larger bag holding 5 kg of product exerts exponentially more stress on the side seals and bottom gusset than a 250g bag. Failing to specify thicker, higher-strength laminates for larger dimensions will result in punctures, side-seal tearing, or catastrophic bottom failures under heavy loads. You cannot use a 3-mil film designed for a 12-ounce coffee bag on a 10-pound bag of charcoal. The drop impact alone will blow out the bottom seal instantly.
Specifying dimensions too tightly against the product's dry volume creates a high risk of overfilling. When the product level sits too close to the top of the bag, product dust or larger particulate matter enters the seal area during the filling cycle. This contamination prevents the sealant layers from fusing completely, leading to micro-leaks and rapid oxygen ingress. Even a single grain of sugar caught in the seal matrix will create a capillary channel for air to enter.
To mitigate this risk, establish standardized fill lines during the CAD specification process. Implement strict volumetric tolerance checks before approving bulk tooling. The packaging design must account for the natural settling of the product and ensure the fill level never encroaches on the mandatory 2-3 inch sealing allowance. Run vibration tests to see how much the product settles, and measure the fill line immediately after the drop, before settling occurs.
Bag width, gusset depth, and film roll-stock specifications must match the exact operational limits of your automated packaging equipment. Whether utilizing Vertical Form Fill Seal machines or pre-made pouch fillers, the bag dimensions must align with the specific jaw widths and forming tubes. An oversized bag will fold or jam in the sealing jaws, while an undersized bag will stretch and tear. You must measure the maximum jaw opening and the forming collar diameter before finalizing any bag dimensions.
The hidden costs of ignoring machinery compatibility are severe. Forcing non-standard, oversized, or overly rigid bag dimensions through incompatible equipment requires costly retrofitting of forming collars and sealing jaws. It leads to slowed cycle times, increased scrap rates, and frequent machine downtime as operators struggle to clear jams and adjust tension settings. If your bag is half an inch wider than your sealing jaws, you will have unsealed corners on every single unit.
Oversized bags create dead space within secondary packaging, such as corrugated cartons. This dead space reduces the overall compression strength of the carton, making it susceptible to crushing under the weight of stacked pallets. Shipping air drives up dimensional weight shipping costs, severely impacting logistical efficiency. If your bags don't fit tightly in the box, the box takes the entire load of the pallet above it, leading to crushed cartons and damaged product.
Bag Fit in Carton | Carton Compression Strength | Pallet Stability | Shipping Cost Efficiency |
|---|---|---|---|
Tight / Nested | Maximum (Product supports load) | High | Optimal |
Loose / Dead Space | Low (Carton bears full load) | Poor (Shifting during transit) | Poor (Paying to ship air) |
Oversized / Bulging | Compromised (Carton flaps won't seal) | Very Poor (Uneven stacking) | Poor (Increased damage rates) |
Implement a framework for reverse-engineering bag dimensions based on standard master shipping carton sizes and pallet configurations. Calculate the exact internal dimensions of the carton and size the bags so they nest tightly without bulging. This maximizes logistical ROI by ensuring every cubic inch of the shipping container is utilized effectively, reducing freight costs per unit. Work backward from the pallet size to the carton size, and finally to the individual bag dimensions.
Proper sizing of Quad Seal Bags is a strict mathematical balance of product density, structural mechanics, and machinery constraints. By adhering to engineering formulas and volumetric calculations, you ensure the packaging performs flawlessly from the filling line to the retail shelf.
Calculate precise product volume based on bulk density before selecting bag dimensions.
Mandate a 2-3 inch sealing allowance to prevent seal contamination and heat-jaw damage.
Design the bag dimensions to ensure the product reaches the 70-80% minimum fill level for structural rigidity.
Verify all proposed dimensions against the specific jaw widths and forming tubes of your filling equipment.
Request physical, unprinted prototypes in the calculated dimensions to conduct real-world fill, seal, and drop tests before committing to a full production run.
A: You must add a mandatory 2 to 3 inches of extra length above the product fill line. This allowance provides adequate space for the heat sealing jaws to operate without melting the product, accommodates necessary headspace for air displacement, and prevents product dust from contaminating the seal zone.
A: No. Bag sizing depends entirely on product bulk density, not just net weight. A dense product like ground powder occupies significantly less volume than a low-density product like extruded pet food. Using the same bag size for both will result in severe underfilling for the dense product and overfilling for the lighter product.
A: While both feature four corner seals, 1–5 kg Flat Bottom Bags utilize a completely flat base, which improves volume utilization and vertical stability. This design allows for a larger internal capacity within a smaller shelf footprint, making it highly efficient for heavy, bulk applications compared to standard quad seal formats.
A: Side gussets exponentially increase the internal volume of the bag without requiring a wider front panel. By expanding the depth of the bag, side gussets allow you to hold significantly more product while maintaining a consistent, narrow facing on the retail shelf.
A: A quad seal bag must be filled to a minimum of 70% to 80% of its total internal volume. The product provides the internal tension necessary to support the side gussets and front panels. Falling below this threshold causes the bag to sag, crease, and lose its structural integrity.
A: Yes. Custom sizes require unique tooling, specific forming collars, and adjusted web tracking on the manufacturing line. Sticking to standard industry widths (3.15" to 7.87") and lengths (6" to 19") avoids these initial setup costs and significantly reduces lead times for roll-stock and pre-made pouches.
A: Always request physical, unprinted prototypes based on your calculated dimensions. Conduct real-world testing by filling the prototypes with your actual product to verify the 70-80% fill level. Run the filled bags through your sealing equipment and perform drop tests to ensure structural integrity and seal strength.
