Packaging failure for heavy retail goods carries compounding financial and reputational costs. Product slump, seal rupture, and retailer rejection quickly erode profit margins. Standard flexible packaging struggles mechanically when subjected to high-weight loads exceeding 10 kilograms. Granular and dense materials shift continuously during transit and retail display. This constant movement alters the center of gravity. Traditional bags lose their shape entirely under this stress. They compromise both shelf presence and vital product protection. We need a better structural approach to handle these physical demands. quad seal bags serve as a highly effective structural engineering solution. Their specific geometry and reinforced corners provide the necessary rigidity. This unique construction stabilizes heavy bulk products effectively. You get a package that maintains its shape from the filling line to the consumer's home.

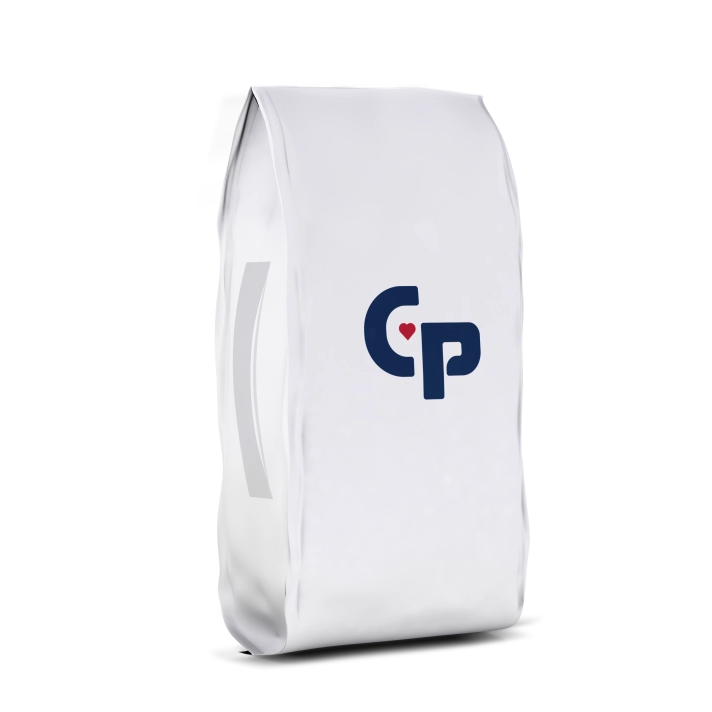

Structural Rigidity: The four reinforced corner seals of quad seal bags act as a rigid exoskeleton, preventing heavy products from slumping or tipping on retail shelves.
Optimized Space Utilization: By maintaining a uniform, block-like shape, these bags maximize pallet density during transport and optimize shelf footprint compared to traditional pillow bags.
Format Versatility & Branding: Quad seal bags offer superior branding real estate (four distinct, uninterrupted printable panels on the front, back, and side gussets) without distortion, crucial for premium positioning of bulk items.
Equipment Compatibility: Transitioning to this format requires evaluating existing Vertical Form Fill Seal (VFFS) machinery for quad-seal tooling compatibility and changeover requirements.
Packaging heavy goods requires managing complex physical forces. Products like pet food, agricultural supplies, and bulk coffee exert significant outward and downward pressure. Granular items flow and settle during vibration on transport trucks. This settling forces the packaging material to stretch. If the bag lacks structural reinforcement, the internal load dictates the external shape. The product pushes against the weakest points of the film. This outward pressure compromises the bag's vertical stability over time. When you load 15 kilograms of dense kibble into a standard pouch, the bulk density acts like a fluid, seeking the path of least resistance and distorting the film web.
Traditional pillow bags and standard stand-up pouches lack rigid structural framing. They rely entirely on the film's tensile strength and a single bottom gusset. This absence of vertical reinforcement leads directly to the "elephant foot" effect. The bottom bulges outward uncontrollably under heavy loads. As the base rounds out, the center of gravity shifts unpredictably. The bag eventually tips over on the retail shelf. Quad Seal Bags solve this by framing the product. The four sealed corners restrict outward bulging and force the bag to remain upright.
Standard pouches experience base rounding, causing immediate instability.
Pillow bags suffer from vertical slump, reducing visible branding area.
Unreinforced side gussets blow out under top-load pressure during pallet stacking.
Center of gravity shifts forward, causing face-plants on retail shelving.
Unstable packaging directly impacts business performance. Bags that tip or bulge suffer higher damage rates during transit. They rub against each other, causing friction wear and micro-punctures. On the retail floor, inefficient stacking wastes valuable shelf space. Retailers often reject pallets that lean or collapse. Furthermore, degraded brand perception occurs when consumers encounter wrinkled, slumped packaging. A premium product loses its appeal when presented in a distorted, failing bag. Warehouse managers spend excessive labor hours restacking failed pallets.
Failure Mode | Root Cause | Operational Impact |
|---|---|---|
Elephant Footing | Lack of vertical corner reinforcement | Loss of shelf stability, tipping |
Pallet Overhang | Uncontrolled side gusset expansion | Transit damage, stretch wrap failure |
Seal Creep | Inadequate jaw pressure on thick films | Oxygen ingress, product spoilage |
Gusset Blowout | Poor drop impact resistance | Total product loss, cleanup labor |
The manufacturing process of these bags involves sealing all four vertical edges. This creates an I-beam-like structural rigidity along the vertical axis. These four stiffened corners act as pillars. They resist the outward pressure generated by heavy contents. Instead of the film stretching into a cylinder, the corners hold the material in tension. This tension maintains the bag's intended rectangular shape, even when subjected to rough handling. On the filling line, this rigidity helps the bag track straight through the sealing jaws.
Side gussets are essential for volume accommodation. They expand outward as the product fills the cavity. However, because the vertical edges are sealed, the expansion is controlled. The side gussets fold neatly, maintaining a clean, flat-sided appearance. This controlled expansion creates a box-like shape. The flat bottom surface allows the bag to stand completely upright without leaning. The gussets also provide uninterrupted side panels for additional branding. You avoid the distorted graphics common on overfilled pillow bags.
Stability depends entirely on load distribution. The quad seal design forces the bag to maintain a strict rectangular footprint. This geometry keeps the product mass evenly distributed across the base. It keeps the center of gravity low and perfectly centered. A centered load is critical for preventing shelf-tipping. Even as the product settles over time, the rigid corners prevent the mass from shifting to one side. This predictable footprint allows for tighter planograms at the retail level.
Structural geometry requires robust material support. You must pair the quad seal structure with high-barrier, multi-layer laminated films. Common structures include PET/AL/PE, heavy-duty Mylar, or recyclable PE/PE laminates. These multi-layer constructions prevent burst failures under high pressure. They also protect the contents against oxygen, moisture, and grease ingress. The combination of rigid corners and tough laminates ensures the bag survives the entire supply chain. We frequently specify 120-micron to 150-micron thicknesses for loads exceeding 15 kilograms.
The base construction dictates how a bag interacts with a shelf. Standard quad seal bags feature a folded, sealed bottom. This fold provides excellent stability for many applications. However, 10–20 kg Flat Bottom Bags utilize a distinct, flat-molded base. This glued or heat-sealed flat bottom offers superior stability for the heaviest weight classes. The entirely flat base acts like a solid platform. It prevents any rocking motion, making it ideal for ultra-heavy granular products. The choice depends on your specific drop test requirements and retail display expectations.
Spatial efficiency matters for both retail shelving and standard shipping pallets. Both formats excel at maximizing volume within a tight footprint. They prevent the overhang commonly seen with non-rigid bags. A rectangular profile allows bags to stack flush against one another. This flush stacking optimizes palletization. You can fit more units per pallet, reducing shipping costs and warehouse space requirements. We see a consistent 15% increase in pallet density when switching from pillow bags to rigid corner formats.
Manufacturing costs differ between the two formats. Flat bottom bags often require more complex converting equipment. The specialized folding and gluing of the flat base increase production time and cost. Quad seal bags offer a highly cost-efficient alternative. They provide high-performance stability without the premium manufacturing costs of a true flat bottom. They represent an excellent middle-ground for high-volume heavy goods. You achieve the necessary structural integrity while maintaining higher throughput speeds on the filling line.
The pet food sector demands extreme durability. Kibble bags weighing 10 to 20 kilograms endure rough handling. Quad seal formats meet these durability demands effortlessly. They also provide premium, wrinkle-free side-gusset branding. Big-box retail shelves require strong visual presentation. The four printable panels allow brands to display nutritional information clearly on the sides while keeping the front panel clean for high-impact graphics. The high fat content in premium kibble also requires excellent grease barriers, which integrate perfectly with this bag style.
Bulk coffee requires careful gas management. Freshly roasted beans release carbon dioxide for weeks. Quad seal formats balance this high-volume gas management with a clean display presentation. The rigid corners keep the bag looking sharp even as internal pressure fluctuates. The rectangular shape allows cafes and retailers to stack large 5-pound or 10-pound bags efficiently on back-bar shelving. The flat panels prevent the barcode distortion that plagues rounded bags at the checkout scanner.
Agricultural seeds, fertilizers, and industrial chemicals face harsh environments. They must withstand rough supply chain handling and heavy stacking. Environmental exposure is a constant threat. Quad seal packaging resists tearing and shape loss under these conditions. The strong corner seals prevent burst failures when pallets are stacked multiple tiers high in agricultural warehouses. We rely on heavy-duty PE/PE laminates in this sector to provide both weather resistance and structural framing.
Consumers expect resealability for large-volume products. Integrating heavy-duty press-to-close zippers or slider zippers is crucial. Hook-and-loop closures also perform well for powdery substances. You must evaluate how these closures impact the top-seal integrity. A weak zipper installation creates a failure point during drop impacts. Ensure the closure mechanism matches the lifespan of the heavy bag. We recommend flanged zippers for loads over 10 kilograms to provide a wider sealing area and prevent zipper tear-out.
Active products require precise pressure management. Integrating one-way degassing valves is necessary for freshly roasted coffee or specific agricultural chemicals. These valves prevent dangerous gas build-up. Without them, the bag balloons, compromising its structural geometry. Proper valve placement ensures gases escape safely during palletized transport without allowing oxygen back into the package. Position the valve near the top of the bag, away from the product fill line, to prevent particulate clogging.
Carrying a 15-kilogram bag requires ergonomic assistance. Integrating die-cut punch handles or reinforced side-gusset handles improves consumer experience. However, you must design these additions carefully. Punching a hole through the film can create weak points in the barrier. Reinforcement patches around the handle area are necessary to prevent tearing when the heavy bag is lifted. We specify a minimum of 30 millimeters of clearance between the handle die-cut and the primary top seal.
Switching packaging formats carries capital expenditure risks. You must address what is required to retrofit existing Vertical Form Fill Seal machines. Transitioning requires specific quad-seal forming tubes. You will also need side-gusset tuckers and specialized sealing jaws to create the four corner seals. Audit your current equipment to determine if a simple tooling changeover is sufficient or if a new machine is required. Older VFFS units often lack the servo-driven precision needed to align the four corners accurately at high speeds.
Palletization improves dramatically with rigid packaging. The uniform, rectangular shape of filled quad seal bags prevents overhang on wooden pallets. This flush stacking reduces stretch-wrap requirements. It minimizes transit friction between adjacent pallets. A stable pallet load prevents product damage and ensures retailers receive intact, display-ready merchandise. You can eliminate the need for expensive corrugated slip sheets between pallet layers because the bags interlock securely.
Implementing a rigorous testing framework is non-negotiable. Evaluate bag quality using standardized drop testing according to ASTM standards. Conduct burst strength analysis to ensure the corner seals withstand sudden impacts. Perform seal integrity testing under sustained heavy loads to simulate long-term warehouse stacking. Document these protocols to maintain consistent quality across production runs. We mandate a 1.5-meter drop test on all four faces and the bottom gusset before approving a new film structure.
Request detailed material data sheets from your packaging supplier to verify puncture resistance and barrier properties.
Order physical unprinted samples to conduct in-house drop testing and volume verification.
Audit your current VFFS equipment with your maintenance team to identify necessary tooling upgrades for quad-seal production.
Run a small-scale palletization trial to measure improvements in stacking density and stretch-wrap reduction.
A: Quad seal bags can comfortably hold between 10 to 20 kilograms, depending on the material thickness and laminate structure. Heavy-duty applications often utilize reinforced multi-layer films to support these higher weight capacities without bursting or tearing.
A: Quad seal bags have a folded and sealed bottom gusset that flattens under product weight. Flat bottom bags feature a distinct, pre-molded flat base that stands completely flat even when empty, offering slightly better stability for ultra-heavy items.
A: Yes. If you are using automated filling, your Vertical Form Fill Seal (VFFS) machine needs specific quad-seal forming tubes, side-gusset tuckers, and specialized sealing jaws to create the four vertical corner seals.
A: Yes. Advances in polymer science allow these bags to be manufactured using mono-material structures, such as all-PE (Polyethylene) laminates. These structures maintain structural integrity while being fully recyclable in designated flexible plastic streams.
A: The pet food, bulk coffee, and agricultural industries benefit the most. These sectors require durable packaging for heavy granular products that must maintain a strong, wrinkle-free retail presentation on store shelves.
A: Degassing valves are heat-sealed into the front or back panels during the converting process. They are positioned away from the structural corner seals, allowing gases to vent safely without weakening the bag's rigid framework.
