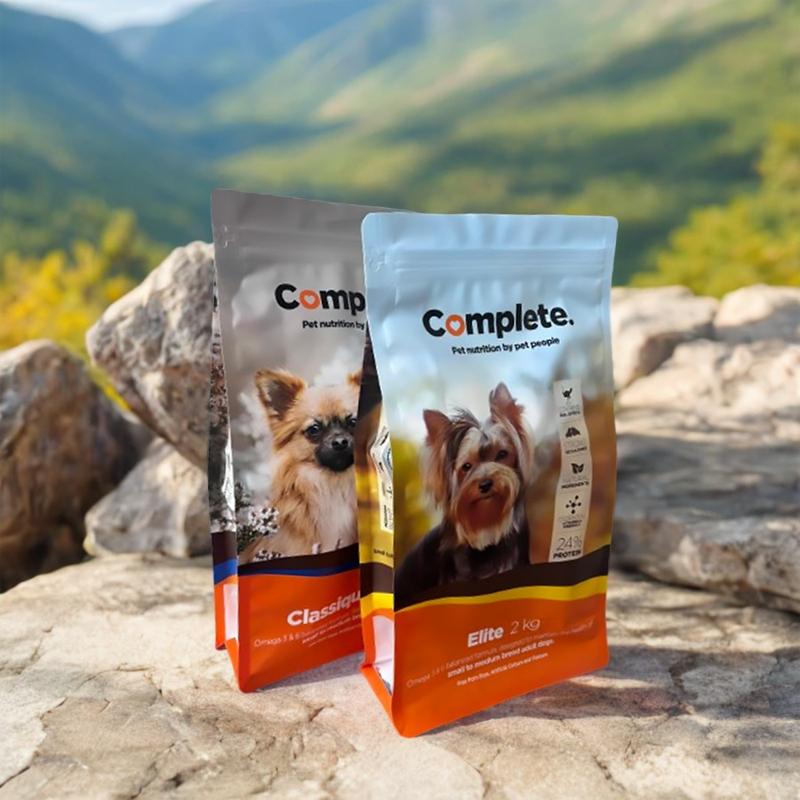

Consumer demand for premium retail presentation drives a massive shift toward flat bottom bags (also known as box pouches or block bottom bags). Achieving shelf appeal often introduces friction on the production floor. While these bags offer superior structural stability and five panels of branding real estate, their complex construction—featuring side gussets and multiple seal layers—creates unique handling, opening, and sealing challenges on automated filling equipment. Evaluating the transition to this packaging format requires a rigorous analysis of machine compatibility, throughput trade-offs, and material specifications. This guide breaks down the mechanical realities of running Flat Bottom Bags on automated lines to help operations teams assess feasibility, forecast OEE (Overall Equipment Effectiveness) impacts, and mitigate implementation risks.
Throughput vs. Complexity: Flat bottom bags typically run at lower Bags Per Minute (BPM) than standard pillow or stand-up pouches due to the extended time required for proper bag opening, product settling, and complex sealing.
Equipment Architecture: Success depends on choosing the right deployment method—feeding premade pouches via rotary/inline machines versus forming them inline on Vertical Form-Fill-Seal (VFFS) equipment using packaging roll film.
Sealing Vulnerabilities: The intersection of side gussets and the top seal creates a high-risk zone for leaks; specialized heat jaws and cooling bars are mandatory for seal integrity.
Sensor Dependency: Reliable operation requires advanced sensor arrays, including bottom-presence detection and precise photo-eye registration, to prevent product spillage and material waste.
Loading premade pouches into magazine feeders demands precision engineering. Automated lines utilize robotic pick-and-place mechanisms and custom-engineered gripper arrays to singulate, lift, and transfer these rigid, multi-layered bags without jamming. Unlike standard flat pouches, the block bottom design creates a thicker profile in the magazine. This requires specialized shingling techniques to ensure the automated grippers pull exactly one bag per cycle. If the gripper calibration is off by even a millimeter, the line risks misfeeds and subsequent downtime. Operators spend significant time adjusting magazine angles and vacuum cup placement to accommodate slight variations in bag stiffness from different supplier batches.
Alternatively, inline forming utilizes Vertical Form-Fill-Seal (VFFS) machines equipped with specialized forming tubes and gusseting assemblies. Forming these bags directly from Packaging Roll Film offers distinct operational efficiencies for high-volume, dedicated runs. This method involves higher upfront tooling costs and complex mechanical folding sequences. The packaging material must navigate a series of plows and formers to create the side gussets and flat base before vertical and horizontal seals apply. Operations teams weigh the continuous throughput advantages of roll film against the mechanical complexity of inline folding. Maintenance crews must frequently inspect the forming collars for wear, as any burrs or scratches will drag on the film, causing tracking errors and uneven gussets.
Opening a multi-layered pouch on an automated line requires synchronized mechanical actions. Automated lines utilize dual-action vacuum suction cups and mechanical grippers to pull open the rigid side gussets without tearing or misaligning the material. The vacuum system generates sufficient negative pressure to overcome the stiffness of the laminate. Once the top pulls open, the bag is not yet ready for product. The bottom gusset remains folded and requires additional mechanical intervention.
To fully expand the bottom gusset, machines deploy targeted bursts of clean compressed air. This inflation ensures the bag is structurally ready to receive the product drop, transforming it from a flat profile into a rigid, freestanding box shape. Following inflation, a dust-tight seal collar or specialized pouch-opening funnel inserts tightly inside the bag opening. This spout insertion contains product debris and prevents seal contamination during the drop. Keeping the seal area clean prevents weak spots in the final closure. Operators routinely check air pressure regulators, as insufficient air blasts leave the bottom corners folded, leading to product spills and rejected packages.
Reliable automation relies heavily on real-time feedback from sensor networks. Dual sensors located at the bottom of the bag station detect proper bag placement and complete bottom-gusset expansion. If these sensors do not verify that the bag is fully open and positioned correctly, the filling sequence will not trigger. This interlocking safety mechanism prevents catastrophic product spills that cause extensive machine downtime and product waste. Technicians must clean these optical sensors daily, as ambient dust from the filling process easily obscures the lenses and causes false faults.
For systems running roll film, print registration dictates package quality. High-speed photo-eye sensors track eye marks on the packaging material, ensuring that the complex five-panel design aligns perfectly with the forming, folding, and cutting stations. A drift in registration ruins the visual appeal of the retail package and causes the sealing jaws to clamp down on the wrong section of the gusset. This misalignment compromises structural integrity. Operators use fine-tuning dials to adjust the film tension and brake systems, keeping the eye mark perfectly centered under the sensor beam.
The inward fold of the side gussets creates a natural choke point at the bag opening, increasing the risk of product bridging or bottlenecking. This proves particularly problematic for powders, granules, or bulky items. Filling lines utilize diving nozzle technology to combat this restriction. Diving nozzles lower deep into the bag during the fill cycle and retract progressively as the product rises. This mechanism reduces product splash, minimizes dust generation, and keeps the top seal area clean.
Once the product enters the pouch, it requires compaction. Automated lines integrate vibration plates or tapping mechanisms to settle the product. Settling ensures the bag maintains its block-bottom shape, lowers the center of gravity to prevent tipping, and leaves adequate headspace for the final sealing jaws to close without trapping product in the seal. Plant engineers adjust the frequency and amplitude of these vibrators based on the specific bulk density of the product being run.
Operational Comparison of Bag Handling Mechanisms | |||
Mechanism | Primary Function | Operational Requirement | Common Failure Mode |
|---|---|---|---|
Vacuum Suction Cups | Initial opening of top panels | High negative pressure; clean cup surfaces | Worn rubber cups losing suction |
Air Inflation Nozzles | Expanding the bottom gusset | Regulated, clean compressed air bursts | Moisture in air lines clogging nozzles |
Diving Nozzles | Delivering product cleanly | Synchronized retraction speed with fill rate | Retracting too fast, causing dust plumes |
Vibration Plates | Settling product and shaping bag | Adjustable amplitude and frequency | Over-vibration causing product separation |
The most vulnerable point of a box pouch is the top seal, specifically the transition zone. The machine applies uniform pressure and heat through varying material thicknesses here. The profile transitions abruptly from two layers on the front and back panels to four layers where the side gussets fold inward. The thermodynamics of sealing this zone require precise control and constant monitoring.
Standard flat sealing jaws fail in this application. Custom-machined sealing jaws that accommodate the specific gusset profile prevent leaks. These jaws feature specialized serrations or relief zones that apply extra pressure to the thicker four-layer sections while preventing the two-layer sections from melting or burning. Maintenance teams use pressure-sensitive carbon paper during setup to verify that the jaws apply even force across the entire width of the seal. Failure to customize the heat jaws results in micro-leaks, channel leaks, and pinholes, destroying the barrier properties of the package.
Applying heat represents only half the sealing equation. Cooling bars pass over the top seal immediately after heat application. This step rapidly sets the heated polymer layers, flattens the profile, and strengthens the seal before the bag experiences mechanical stress. Without rapid cooling, the heavy product load ruptures the warm, pliable seal as the bag drops onto the outfeed conveyor. Chiller units supply cold water to these bars, and operators monitor flow rates to ensure consistent temperature drops.
The design of the outfeed conveyor accommodates the unique geometry of these filled bags. Mechanisms such as side-support rails or specialized accumulation conveyors prevent heavy, top-heavy, or freshly sealed bags from tipping over upon release from the pouch clamps. Securing a smooth transition to secondary packaging maintains continuous line speeds. Conveyor belts use high-friction materials to grip the flat bottoms, preventing sliding and shingling as the bags move toward the case packers.
Before committing to a new packaging format, evaluate whether existing rotary or inline pouch machines have the physical footprint to accommodate necessary upgrades. Adding opening stations, diving nozzles, settling vibrators, and cooling bars requires physical space on the machine chassis. If station availability is limited, retrofitting fails, necessitating a dedicated machine purchase. Engineering teams map out the station layout, measuring clearance for new pneumatic cylinders and servo motors.
Evaluate pneumatic and vacuum requirements thoroughly. Handling rigid, multi-layered materials demands increased capacity from plant air systems. Higher vacuum pressure for suction cups, more frequent air bursts for gusset inflation, and specialized pneumatic gripper controls strain undersized compressors. This leads to inconsistent machine performance and frequent low-air pressure alarms. Upgrading the main air drops and installing localized vacuum generators often solves these supply issues.
Operational agility dictates success for facilities running multiple SKUs. Assess the time and labor costs associated with changing over machine tooling when switching production runs between flat bottom formats and standard stand-up pouches. Complex folding assemblies and custom seal jaws take significantly longer to align and calibrate than standard tooling. This directly impacts overall line efficiency.
Purge the filling system of the previous product.
Swap the forming tube and collar assembly for the new bag size.
Replace the flat sealing jaws with the custom-profiled gusset jaws.
Adjust the photo-eye sensor position for the new print registration marks.
Calibrate the vacuum cup placement and air inflation timing.
Run test cycles with empty bags to verify opening and sealing mechanics.
Perform a water-bath leak test on the first sealed samples.
Film specification involves a delicate balance. The material must be rigid enough to support the block-bottom structure and heavy product weights on retail shelves, yet flexible enough to prevent cracking during automated forming and folding. Laminate structures that are too stiff resist the vacuum opening mechanisms and fracture at the gusset creases. Packaging engineers conduct extensive drop tests and flex-crack evaluations to find the optimal material thickness.
The Coefficient of Friction (COF) of the packaging material dictates how well it runs through the machine. The surface slip impacts machine feed rates, forming tube navigation, and magazine dispensing. Operations specify the correct COF with material suppliers to prevent jamming and ensure smooth mechanical handling. If the film is too tacky, it drags on the forming collar; if it is too slick, the drive belts slip and fail to advance the film accurately.
Setting realistic expectations for production speeds prevents scheduling conflicts. Operations managers forecast a 15% to 30% reduction in Bags Per Minute (BPM) when migrating to this format compared to standard pillow pouches. The extra mechanical steps required for bag opening, air inflation, product settling, and multi-layer sealing inherently increase cycle times. Factor this BPM reduction into overall capacity planning to avoid supply chain shortfalls. Running the machines too fast results in poor seals and high scrap rates, negating any perceived throughput gains.
Transitioning to complex pouch formats requires a calculated approach to equipment modification and material handling. Success hinges on precise mechanical handling, advanced sensor integration, and customized sealing technology. Operations teams must align their machinery capabilities with the physical demands of multi-layered, gusseted films to maintain production efficiency.
Initiate a material trial with packaging suppliers to verify COF and stiffness before full-scale production.
Request OEE simulation data from equipment manufacturers based on your specific product characteristics.
Conduct a seal-integrity and outfeed-conveyor audit on existing machinery to identify necessary retrofits.
Implement a daily cleaning schedule for all optical sensors and vacuum cups to prevent misfeeds.
A: No, standard VFFS machines require significant retrofitting, including specialized forming tubes, gusseting assemblies, and upgraded sealing jaws, to handle flat bottom bags formed from packaging roll film.
A: Leaks typically occur at the gusset transition zones where the material thickness changes from two to four layers. This requires precise temperature and pressure calibration, combined with custom-profiled sealing jaws, to resolve.
A: Generally, VFFS systems using packaging roll film offer higher continuous throughput once dialed in, whereas premade rotary machines are slower in raw BPM but offer faster changeovers for lines with multiple SKUs.
A: Cooling bars rapidly set the heated polymer layers, providing immediate structural integrity so the heavy bag does not burst when dropped onto the conveyor.
A: The machine coordinates dual-action vacuum suction cups pulling the side panels apart, combined with a blast of compressed air and dual sensor detection at the bottom of the pouch to verify complete gusset expansion.
A: Diving nozzles lower deep into the bag opening and slowly rise as they discharge product. This minimizes product dusting and splash, preventing raw particles from coating the sealing area and compromising the top seal.
A: Yes, operations managers should expect a 15% to 30% reduction in Bags Per Minute (BPM) due to the extra mechanical steps required for bag opening, product settling, and multi-layer sealing.
