Packaging dimensions represent strict mechanical constraints that dictate automated filling line performance. They are not merely marketing decisions. Operational reality on the plant floor shows that a fraction of an inch can make or break your production schedule. Mismatched pouch dimensions introduce compounding inefficiencies across the entire packaging process. Undersizing causes product bridging, seal contamination, and catastrophic blowouts on the line. Conversely, oversizing leads to unnecessary material expenditure, trapped ambient air, and severely reduced case packing density. Optimizing a flat barrier pouch requires precise calculation. You must account for product volume, flow characteristics, and machine tooling limits. Achieving maximum throughput without sacrificing seal integrity demands a rigorous approach to dimensional sizing. We will explore how exact measurements influence machine compatibility, material efficiency, and overall equipment effectiveness.
Headspace is Critical: Insufficient headspace in a flat barrier pouch guarantees seal contamination and poor closure, leading to high rejection rates.
Volume vs. Weight: Pouch capacity must be calculated based on the specific bulk density and flowability of the product, not just target net weight.
Storage & Material Efficiency: Unfilled flat barrier pouches offer superior lay-flat storage density compared to gusseted formats, reducing warehousing footprint before they ever reach the filling line.
Machine Compatibility: Pouch dimensions must align strictly with the operational tolerances of the filling equipment, including seal jaw width, gripper reach, and drop heights.

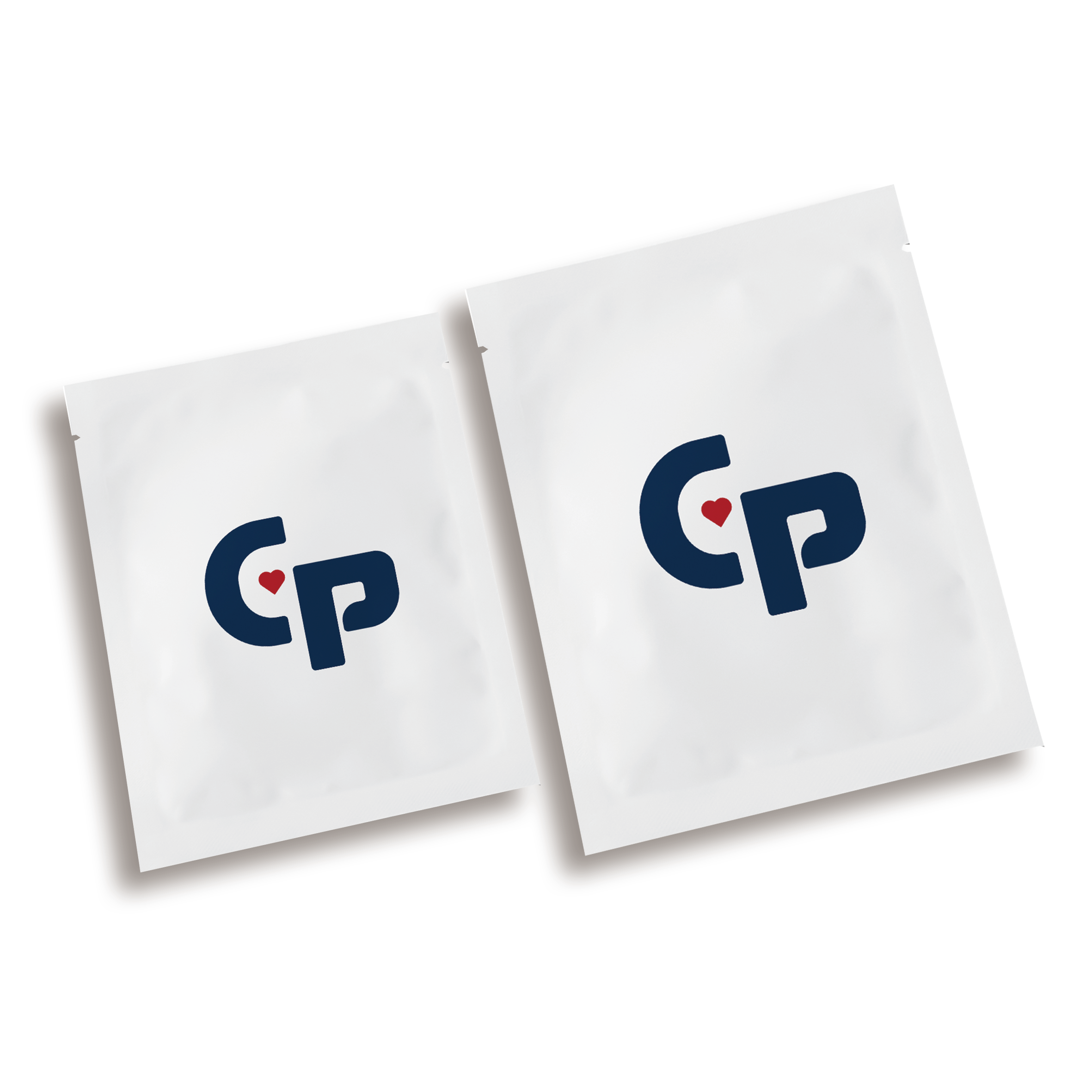

Flat pouches operate under strict geometric limitations. Whether utilizing 2-side, 3-side, or bottom-load configurations, the structure remains fundamentally two-dimensional before filling. The lack of an expandable bottom or side gusset restricts internal volume expansion. This physical reality makes precise width-to-height ratios mandatory for successful dosing. When product enters the pouch, the front and back panels bow outward. This bowing action reduces the overall height and width of the pouch. Failing to account for this dimensional shift leads directly to overfilling and production bottlenecks. Operators frequently encounter situations where a pouch looks adequately sized on a flat table but fails completely once the product expands the center panels. You must calculate the exact draw-in rate of the film when filled to capacity.
Understanding the specific construction of the pouch helps dictate the filling strategy. A 3-side seal pouch leaves one end completely open for the filling nozzle. The machine grippers must grab the unsealed edges, pull them slightly inward to pop the pouch open, and hold it steady while the product drops. If the pouch is too narrow, the grippers will not have enough surface area to hold the film securely. This causes the pouch to slip during the fill cycle, dumping product onto the machine base. You need to specify a minimum gripper allowance, typically around 15mm to 20mm on each side, to ensure stable handling at high speeds.
Multi-layer laminations protect products against UV light, moisture, oxygen, and chemicals. These material choices directly affect the stiffness and machinability of the packaging. Thicker barrier films resist bending and require more force to open during high-speed vacuum cycles. Stiff materials maintain their shape well but can challenge mechanical grippers if sized incorrectly. A well-engineered package balances necessary protective properties with the flexibility required for rapid inline handling. When you specify high-barrier materials like aluminum foil laminates or thick EVOH layers, the film memory increases. The pouch wants to remain flat.
Vacuum suction cups on the filling line must overcome this material stiffness to open the pouch mouth. If the pouch dimensions are too small, the suction cups may overlap the side seals, breaking the vacuum and failing to open the bag. Flat Barrier Pouches require a specific ratio of open face area to accommodate the vacuum cups. You must measure the exact diameter of your machine's suction cups and ensure the unsealed opening of the pouch provides at least a 10mm clearance around the cup edges. This prevents misfeeds and keeps the line running continuously.
Filling dynamics change significantly depending on your chosen packaging format. Loading pre-made flat pouches requires mechanical grippers to pick, open, fill, and seal individual units. This approach offers flexibility for shorter runs and frequent changeovers. Forming pouches inline using Packaging Roll Film alters the throughput advantages. Form-fill-seal (FFS) machines pull the film over a forming collar, creating the pouch around the product drop. FFS lines typically offer higher continuous sealing speeds but demand precise web tension and tooling alignment to prevent tracking errors.
When running pre-made pouches, the magazine feed must be calibrated to the exact thickness of the empty pouches. If the pouches are sized too tightly, they can nest together, causing the machine to pull two pouches at once. This double-feed jams the grippers and requires immediate operator intervention. On an FFS line, the dimensions are dictated by the forming tube and the web width. You have more control over the final pouch length, but the width is fixed by the hardware. Changing the width on an FFS machine requires a complete tooling change, which takes time and mechanical effort.
Flat formats provide distinct supply chain advantages before they ever reach the production floor. Because they lie completely flat prior to filling, they maximize pallet utilization. This structural efficiency minimizes storage costs compared to pre-formed rigid containers or highly structured gusseted bags. You can store thousands of flat pouches in a fraction of the space required for alternative packaging types. This density reduces inbound freight requirements and optimizes limited warehouse square footage.
Consider the staging area next to the filling line. Operators can stage a massive quantity of flat pouches in a very small footprint, reducing the frequency of material replenishment trips. This keeps the operators focused on machine performance rather than material handling. The lay-flat nature also protects the pouches from deformation during transit. Rigid containers can dent or crush, but flat pouches absorb transit vibrations without sustaining damage, ensuring they feed smoothly into the machine magazine upon arrival.
Forcing a specific product volume into a pouch that is too small creates immediate operational hazards. Insufficient headspace causes splash-back for liquids and severe dusting for powders. This stray product enters the seal area, compromising the barrier and causing micro-leaks. Capillary action can pull liquids through compromised seals long after the pouch leaves the machine. When the heat seal jaws clamp down on product residue, the heat burns the contaminant, creating a weak point in the seal. This leads to blown seals during case packing or transit.
Physical stress on the film escalates when a pouch is filled to its absolute top. The outward pressure stretches the material and weakens the side seals. This tension distorts the printed panels, stretching graphics and rendering barcodes completely unscannable. Operators must inevitably slow down filling cycles to carefully dose product into undersized pouches. This deliberate pacing prevents spillage but significantly reduces Overall Equipment Effectiveness (OEE). You lose valuable production hours simply trying to force a product into an inadequate package.
Using a pouch even a few millimeters larger than necessary generates substantial waste. Across high-volume production runs, this excess material quickly inflates operational expenses. Oversizing also introduces mechanical complications during the sealing phase. Excess headspace traps ambient oxygen within the package. This trapped air acts like a balloon, making the pouch difficult to handle downstream.
Removing this trapped air requires additional mechanical steps. You must implement nitrogen purging, vacuum sealing, or mechanical squeezing to flatten the pouch before the jaws close. These extra steps extend cycle times and reduce hourly throughput. Furthermore, oversized pouches fail to pack tightly into secondary shipping cases. This inefficiency reduces case packing density and inflates downstream logistics costs. You end up paying to ship empty air instead of product.
Small-format, single-use, or trial-size flat pouches require unique filling mechanics. Multi-lane filling configurations demand exact dimensional consistency to prevent nozzle collisions. You must establish clear criteria for capacity thresholds. When a product's volume reaches the mathematical limit for a flat format, it necessitates a strategic transition. Pushing beyond this threshold requires moving to stand-up pouches or side-gusset bags to maintain line efficiency.
Multi-lane machines drop product into several pouches simultaneously. If the pouches are sized inconsistently, the nozzles will not align perfectly with the pouch openings. This causes product to spill down the outside of the film, contaminating the entire batch. You must maintain strict dimensional tolerances, usually within +/- 1mm, to ensure multi-lane equipment operates without constant jams. The physical width of the filling nozzles dictates the absolute minimum width of the pouch opening.
Calculating the exact cubic volume required for your specific product weight is non-negotiable. You must account for settling variations that occur during dosing and subsequent shipment. Flowability dictates sizing requirements. A product that flows easily requires less mechanical intervention than a sticky or aerated product.
Product Type | Flow Characteristics | Sizing Considerations |
|---|---|---|
Liquids | Free-flowing, prone to splashing | Requires extra headspace to prevent seal contamination from slosh. |
Fine Powders | Non-free-flowing, aerates easily | Needs significant settling volume; prone to bridging in the funnel. |
Granular Solids | Free-flowing, predictable settling | Allows for tighter sizing tolerances; minimal aeration issues. |
Viscous Pastes | Slow-flowing, stringy | Requires wide openings to accommodate positive displacement nozzles. |
When dealing with fine powders, aeration is a major factor. As the powder drops from the hopper into the pouch, it mixes with air, temporarily increasing its volume. If the pouch is sized only for the settled volume, the aerated powder will overflow during the fill cycle. You must size the pouch to accommodate this temporary volume expansion, then allow time for the powder to settle before sealing. This often requires adding settling conveyors or vibration stations to the line.
The width and length of your pouch must fit within the specific tolerances of the filling machine's seal jaws. This alignment ensures uniform pressure and heat distribution across the entire seal area. You must also factor in gripper allowances. Mechanical grippers require physical space to hold the pouch open during the fill cycle. If the pouch is too narrow, the grippers may obstruct the dosing nozzle or funnel, causing immediate line jams.
Seal jaw profiles vary between machines. Some use flat jaws, while others use serrated or grooved profiles. The pouch must be wide enough to allow the jaws to clamp down completely without pinching the side seals. If the jaws pinch the side seals, it creates a stress point that will eventually leak. You must measure the exact width of your seal jaws and ensure the pouch width provides adequate clearance on both sides.
Operations moving to FFS machines must calculate optimal web dimensions. Determining the correct web width and cut-off length minimizes edge trim waste. These calculations must maintain target fill volumes and adequate headspace. Precise registration mark placement on the roll film ensures accurate cutting and sealing, keeping the production line running at peak continuous speeds.
The web width determines the final width of the formed pouch. You must calculate the total circumference of the pouch, add the required overlap for the back seal (usually 10mm to 15mm), and factor in any edge trim required by the machine. The cut-off length determines the height of the pouch. You must program the machine's photo-eye to read the registration marks accurately to ensure the graphics align perfectly with the physical cuts. Misaligned cuts result in rejected product and wasted film.
Never commit to a full production run without physical testing. Running physical line trials with unprinted prototype pouches is mandatory. These trials expose hidden issues with product bridging, nozzle clearance, and seal integrity. Testing confirms whether the calculated dimensions perform under actual high-speed mechanical stress. You need to run at least a few hundred pouches at full production speed to identify any intermittent feeding or sealing issues.
During the trial, monitor the seal area closely. Look for any signs of product contamination or wrinkling. Wrinkles in the seal indicate that the pouch is either undersized or the grippers are not holding the film under proper tension. Adjust the machine settings and document the results. If the wrinkles persist, you must revise the pouch dimensions before ordering printed film.
Set strict dimensional tolerances with your packaging supplier. A variance of even two millimeters in a flat pouch can disrupt automated gripper alignment. Inconsistent sizing leads to misaligned drop-nozzle placement and immediate product spills. Regular audits of incoming pouch batches ensure they meet the precise mechanical requirements of your filling equipment.
Measure the width and length of a random sample of pouches from each delivery.
Verify the placement of tear notches and hang holes.
Check the seal strength using a burst tester or tensile testing equipment.
Document the findings and hold the supplier accountable for any deviations from the agreed-upon specifications.
Powder applications in flat pouches require aggressive mitigation strategies. Tightly sized pouches leave little room for error when dust kicks up during the drop. Implement static eliminators to prevent powder from clinging to the inner walls. Utilize vacuum-assisted nozzles and modified drop paths to keep the critical seal area clean before the jaws close.
Static electricity causes fine powders to stick to the film, making it impossible to achieve a clean seal. Install ionizing bars near the film unwind station and directly above the filling funnel. These bars neutralize the static charge, allowing the powder to drop cleanly into the bottom of the pouch. Dust extraction systems pull airborne particles away from the seal area, further reducing the risk of contamination.
The optimal flat barrier pouch size represents a strict mathematical balance. You must weigh product volume against machine tooling limits, material efficiency, and retail shelf presence. Procurement and engineering teams should evaluate suppliers based on their ability to provide exact custom sizing and prototype testing. Avoid settling for off-the-shelf, non-optimized dimensions that will ultimately degrade your line throughput.
Request a custom sizing template from your packaging supplier to map exact dimensions.
Calculate your required headspace based on the specific bulk density and aeration of your product.
Schedule a dedicated machine trial using unprinted sample pouches to verify gripper clearance and seal integrity.
Establish strict dimensional tolerance agreements before ordering high-volume roll film or pre-made pouches.
A: A standard rule is to leave 1 to 1.5 inches of headspace. However, this must be adjusted based on product aeration, liquid slosh dynamics, and the specific clearance required by your machine's seal jaws and grippers.
A: This indicates the pouch is undersized for the target weight. Non-gusseted bags have strict internal volume limitations. When overfilled, the product pushes outward, stretching the film and causing wrinkles at the seal jaws.
A: Physical size does not change the film's chemical makeup. However, overfilling causes severe physical stress and micro-tears at the seals. This mechanical damage compromises the overall barrier properties of the package.
A: Pre-made pouches offer lower initial setup costs and flexibility for short runs. Packaging roll film provides high-speed efficiency, significant material savings, and a lower per-unit cost for high-volume FFS production lines.
A: Liquid sizing relies on static volume calculations with added headspace for slosh control. Powder sizing must account for aeration during the drop, settling time, and extra clearance to keep dust away from the seal area.
A: Flat pouches excel in smaller volumes, single-servings, and sample sizes. They are ideal when you need a flat shipping profile, maximum lay-flat storage density, and compatibility with high-speed multi-lane filling operations.
