Yes, quad seal bags run efficiently on automatic filling equipment when you match the machinery to the specific film structure. Plant managers constantly balance marketing demands for premium shelf appeal against the operational realities of throughput and scrap rates. While these four-corner gusseted pouches offer excellent structural integrity and billboard space, their geometry introduces distinct mechanical challenges. Standard pillow pouch setups fail here. You have to manage the transition zones where the film folds from two layers to four. Automating this format requires specialized tooling, precise heat control, and strict material tolerances. Whether you feed premade pouches into a rotary machine or form them directly from roll stock on a VFFS system, success comes down to equipment architecture. We will break down the exact machine modifications, film specifications, and integration steps needed to run these bags at high speeds without leaking.
Automation is highly viable but requires specialized tooling: Standard sealing jaws often fail on quad seal bags due to the varying film thicknesses at the gussets; specialized custom jaws and tuckers are mandatory.
Two primary automation pathways exist: Operations must choose between feeding premade pouches into rotary/inline machines or forming bags directly from packaging roll film on Vertical Form Fill Seal (VFFS) equipment.
Material selection dictates machine performance: The stiffness, slip coefficient, and sealant layer of the film directly impact machine speeds and seal integrity.
CapEx vs. OpEx trade-offs drive the decision: VFFS requires higher initial capital and technical operator skill but lowers per-bag costs, whereas premade pouch automation offers faster changeovers and lower scrap rates at a higher unit cost.

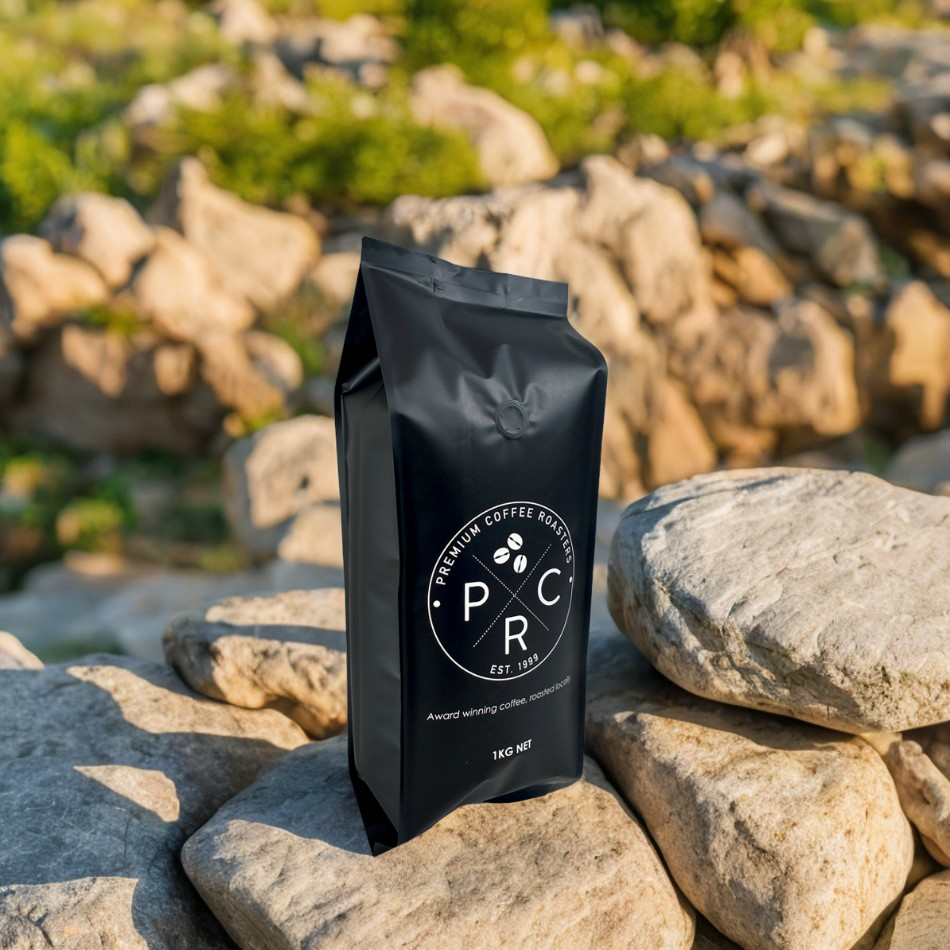

Understanding the structural mechanics dictates how you set up the packaging line. These pouches feature four distinct crisp side seals, deep side gussets, and a flat bottom. This geometry allows the bag to stand upright independently while maintaining a uniform rectangular shape on the retail shelf. The critical areas for automation are the transition zones. These are the specific points where the machine must seal through two layers of film on the front and back panels, and suddenly transition to sealing through four layers of film where the gusset folds inward. Managing this transition without causing capillary leaks is the primary hurdle in pouch automation. If your jaw pressure is uniform across the entire horizontal seal, you will crush the two-layer section and under-seal the four-layer section.
Driving sufficient heat through four layers of material without scorching the two-layer sections requires precise thermal management. Heat penetration must be perfectly balanced. If the temperature is too low, the inner gusset folds will not bond, resulting in open channels where oxygen enters and product escapes. If the temperature is too high, the outer layers will melt, stick to the sealing jaws, and cause immediate line jams. Gusset alignment adds another layer of difficulty. The machine must keep the gussets perfectly aligned during the filling drop. Any shift will cause skewed seals or allow product bridging, where the filled material gets caught in the folds.
Furthermore, the need for longer sealing dwell times to ensure heat penetrates all four layers negatively impacts overall machine cycles per minute (CPM). You cannot simply turn up the heat to run faster; the thermodynamics of the polymer layers dictate the maximum line speed. Operators must find the exact window of temperature, pressure, and time.
Sealing Parameter | Standard Pillow Pouch | Quad Seal Pouch | Operational Impact |
|---|---|---|---|
Jaw Profile | Flat or simple serrated | Custom stepped or relieved jaws | Requires specialized tooling and longer changeover times. |
Dwell Time | Short (0.2 - 0.4 seconds) | Extended (0.5 - 0.8+ seconds) | Reduces overall cycles per minute (CPM). |
Pressure Application | Uniform across the seal bar | Differential pressure zones | Demands servo-driven jaws for precise force control. |
Gusset Management | None | Mechanical or pneumatic tuckers | Adds mechanical complexity and maintenance points. |
VFFS systems automate the entire process by pulling flat Packaging Roll Film over a specialized forming tube. This creates the required shape on the fly. To handle this specific pouch style, the machine requires heavy modifications. Standard setups will not work. Facilities must install specific forming collars, vertical seal bands for the four corners, and complex cross-seal jaws equipped with gusset tuckers. The film web must be tracked perfectly; even a millimeter of drift will cause the four corner seals to misalign, ruining the bag's structural integrity.
This architecture is the best fit for high-volume, dedicated product lines that experience minimal changeovers. Adjusting the forming tube assembly and re-threading the film is a time-intensive process. When running a single SKU for days at a time, VFFS provides the lowest per-bag cost and highest overall efficiency.
Rotary systems take a different approach by loading premade pouches into a magazine. Mechanical grippers pick up each pouch, open it, fill the product, and seal the top in a circular station layout. The operational reality is that rotary machines handle the varying thickness of the pre-made gussets much better at the top seal. The side seals are already formed by the bag converter, removing that burden from your plant floor. However, this process requires consistent pouch manufacturing tolerances to prevent gripper misfeeds. If the bags stick together in the magazine due to static or poor stacking, the machine will jam.
Rotary equipment is the best fit for high-mix, medium-volume facilities requiring frequent product or bag size changeovers. Adjusting the machine for a new bag width often involves a simple push-button servo adjustment rather than a heavy mechanical teardown.
Horizontal systems move premade bags in a straight line through opening, filling, and sealing stations. Contrast this footprint and speed capability against rotary systems. Inline machines often require more floor space but handle heavier or bulkier products more effectively. Items like heavy pet food kibble, large volumes of whole bean coffee, or dense powders are packed using horizontal architectures because the straight-line movement prevents the bag from swinging. On high-speed rotary carousels, heavy bags generate centrifugal force, which can cause the product to spill out before the top seal is applied.
A hybrid approach exists where operators manually feed premade pouches onto filling nozzles or sealing bars. The dosing and sealing cycles remain automated, ensuring accurate weights and consistent seal pressure. This method significantly reduces the initial equipment investment. Semi-automatic setups are the best fit for low-volume production, boutique packaging runs, or initial pilot testing before a facility commits to fully automated systems. It allows operators to learn the handling characteristics of the specific film structure before scaling up.
Integrating the correct filler above the bag-loading station dictates your line efficiency. For dry fillers, facilities use multi-head weighers, volumetric feeders, or auger fillers. The primary challenge is keeping dust and particulates clear of the complex gussets. If powder settles into the gusset folds, the heat seal will fail, creating a weak point that bursts during transport. You must use specialized drop chutes and dust extraction vacuums right at the fill zone.
For liquid fillers, specialized nozzles and positive shut-off valves are configured to handle liquid packaging. These mechanisms prevent splashing or wetting the seal areas. A single drop of liquid in the transition zone of a four-corner gusset will boil during the heat sealing process, blowing a hole straight through the polymer layers.
Many products require gas flushing systems to extend shelf life. Implementing nitrogen purge tubes within the automatic filling cycle displaces oxygen before final seal compression. This is a strict requirement for applications like specialty coffee, roasted nuts, or sensitive snacks. The automation equipment must synchronize the gas flush perfectly with the closing of the sealing jaws. If the jaws close too late, the nitrogen escapes and ambient air rushes back in. If they close too early, the bag balloons and bursts. You need precise PLC timing to ensure residual oxygen levels remain below the required threshold.
The high upfront cost of a VFFS system equipped for complex pouch forming must be compared against the lower CapEx of a rotary machine handling premade bags. However, the OpEx reality shifts the balance over time. Running film directly is significantly cheaper per unit than purchasing pre-converted bags. Facilities must calculate their break-even point based on their annual production volumes. High-volume producers will quickly recoup the VFFS investment through material savings, while co-packers running short batches will benefit from the lower upfront cost and flexibility of rotary systems.
Realistic cycles per minute expectations are necessary for production planning. VFFS systems running this specific pouch style operate slower than standard pillow-bag setups due to the complex sealing requirements. Speeds typically range from 30 to 80 cycles per minute. Conversely, premium, high-speed rotary premade machines can reach up to 200 bags per minute, depending on product flowability and bag sizing. Product characteristics like dust, liquid, or large particulates dictate the actual sustained machine speed in both setups.
Assess the downtime required for different systems. Changing a VFFS forming tube and threading new film takes significant time and requires skilled operators. You have to align the vertical seal bands, adjust the gusset tuckers, and dial in the registration sensors. Adjusting gripper widths on a rotary premade pouch machine is generally faster and often automated via servo motors. Contract packagers prioritize this flexibility over raw speed, making rotary machines highly attractive for operations managing multiple client SKUs.
The material must feature high-barrier, multi-layer laminations such as PET/ALU/PE. These structures provide enough rigidity for the bag to stand upright and form crisp corners. However, balance is required. Overly rigid films cause micro-fractures in the gusset folds during automated forming. The material must be tough enough to protect the product but pliable enough to navigate the forming collar without cracking the barrier layers.
The COF determines how smoothly the material transits over VFFS forming collars. If the friction is too high, the film will drag, stretch, or snap. Improper slip additives lead to tracking errors and misaligned side seals. The packaging material must be engineered with the correct slip properties to match the specific metal finishes of the automation equipment. You need a consistent kinetic COF to ensure the pull belts can grip the film without it slipping, while the inside layer slides easily over the stainless steel forming tube.
The inner sealant layer, typically LLDPE or a specialized metallocene blend, must flow efficiently when heated. It needs to fill the microscopic gaps in the transition zones between the two-layer and four-layer sections. If the sealant resin does not have a high enough melt flow index, capillary leaks will form at the gusset edges. You cannot fix a poor sealant layer by simply increasing jaw pressure; you will only extrude the polymer out of the seal area entirely.
Standard flat jaws crush the two-layer sections while failing to bond the four-layer gussets. Custom-machined stepped jaws are required. These jaws apply differential pressure to accommodate the thickness variations. Servo-driven jaws provide precise pressure control and repeatability compared to standard pneumatic systems, ensuring consistent seal quality across every cycle. Pneumatic cylinders fluctuate with plant air pressure; servos deliver the exact same force every single time.
Mechanical or pneumatic gusset tuckers in VFFS systems fold the film accurately inward before the horizontal seal is applied. If the tuck is asymmetrical, the bag will be deformed and will not stand up on the shelf. Photo-eye sensors are a necessity for print registration and alignment verification. They ensure the graphics remain centered and the tuckers engage at the exact right millisecond.
Standard friction pull belts often fail with heavy, multi-layer films. They slip and cause inconsistent bag lengths. Vacuum pull belts are a standard requirement for accurate film advancement. They grip the material securely without applying excessive mechanical pressure that could mar the printed surface or crush the side gussets as they are being formed.
Modern programmable logic controllers synchronize the complex mechanical steps. The PLC manages gripper opening, tucker expansion, product dose, gas flush, and seal dwell times. Precise timing ensures minimal scrap and maximum consistency. Operators rely on the PLC interface to make micro-adjustments during production runs. When a film roll changes, slight variations in material thickness require the operator to tweak the seal dwell time by a few milliseconds via the HMI.
High scrap rates due to capillary leaks in the gusset transition zones are a primary risk. To mitigate this, facilities must implement strict testing protocols.
Conduct underwater vacuum leak detection during the initial machine setup.
Perform burst testing to determine the exact failure pressure of the top and bottom seals.
Specify high-flow sealant resins from the material supplier to fill transition gaps.
Calibrate sealing jaw temperatures at the start of every shift using external thermocouples.
Premade bags stick together in the magazine, or film wanders off the VFFS collar. Enforcing strict dimensional tolerances with the bag or film converter is the best defense. Utilizing automatic edge-guide tracking systems on VFFS machines ensures the material stays perfectly aligned as it enters the forming section. If the film wanders by even two millimeters, the vertical seals will miss the edge, resulting in an open bag.
Operators treating these complex setups like standard pillow bags will lead to prolonged troubleshooting and equipment wear. Investing in OEM-led training specifically for this tooling is highly recommended. Establishing strict preventative maintenance schedules for sealing jaw cleaning and alignment checks keeps the line running efficiently. Carbon buildup on the sealing jaws creates cold spots, which immediately leads to unsealed gussets.
Audit your current filling equipment to determine if the sealing jaws and pull belts can handle multi-layer gusseted structures.
Send material samples and product to your machinery OEM for a formal Factory Acceptance Testing (FAT) run before purchasing.
Calculate your specific CapEx/OpEx break-even point to decide between a VFFS roll-stock system and a rotary premade pouch machine.
Establish a strict daily maintenance protocol for cleaning sealing jaws and calibrating temperature controllers to prevent capillary leaks.
A: Yes, but it requires a specialized forming assembly, custom sealing jaws, and mechanical gusset tuckers. The retrofit cost must be weighed against purchasing a dedicated machine.
A: Leaks usually occur at the transition zone where two layers of film become four. This indicates insufficient heat penetration, inadequate jaw pressure, or a sealant layer that isn't flowing properly.
A: Generally, yes. Rotary machines handling premade pouches run faster because the complex side seals are already formed, allowing the machine to focus only on filling and top sealing.
A: Thickness varies by product weight, but 4 to 6 mils is common. The film must be rigid enough to stand but flexible enough to fold at the gussets without micro-fracturing.
A: The filler type depends on the product, but the integration requires precision drop chutes to prevent product from contaminating the complex gusset folds during the filling cycle.
