Why Choose Our Retort Pouch?
Retort pouches are flexible packaging materials with a multi-layered composite structure, capable of withstanding high-temperature, high-pressure sterilization at 121°C, achieving commercial aseptic processing of the contents. After simultaneous sterilization of the packaging and contents, they can achieve a shelf life of 12-18 months at room temperature, requiring no refrigeration or added preservatives.
Technical Characteristics
Structural Design: Standard retort pouches employ a three-layer composite structure: an outer PET (polyester film) layer provides printability and mechanical strength; a middle AL (aluminum foil) or NY (nylon) layer provides high barrier properties; and an inner CPP (cast polypropylene) layer ensures heat-sealing strength and food safety contact. For special needs, a transparent high-barrier structure (such as PET/SiOx/CPP) can be used instead of the aluminum foil layer.
Process Parameters
Temperature Tolerance: 121℃-135℃
Sterilization Time: 30-60 minutes (depending on contents)
Oxygen Transmission Rate: ≤0.1 cc/m²/24hr
Water Vapor Transmission Rate: ≤0.5 g/m²/24hr
Physical Properties
Heat Seal Strength: ≥40 N/15mm
Peel Strength: ≥3 N/15mm
Pressure Resistance: ≥100 kg/24hr
Drop Resistance: Unbreakable from a height of 1.2m
Application Areas
Categories Product Examples Specification Range
Ready-to-Eat Meals: Curry, Rice, Pasta, Stews 150g-500g
Soup and Sauce: Broth, Hot Pot Base, Pizza Sauce 200g-1000g
Pet Wet Food: Cat and Dog Main Food Canned Food Alternatives 85g-400g
Infant Supplementary Food: Fruit Puree, Vegetable Puree, Meat Puree 100g-200g Pre-cooked Meats: Tuna, Roast Chicken, Braised Pork Belly
150g-500g Fruit and Vegetable Products: Corn Kernels, Mushrooms, Jam

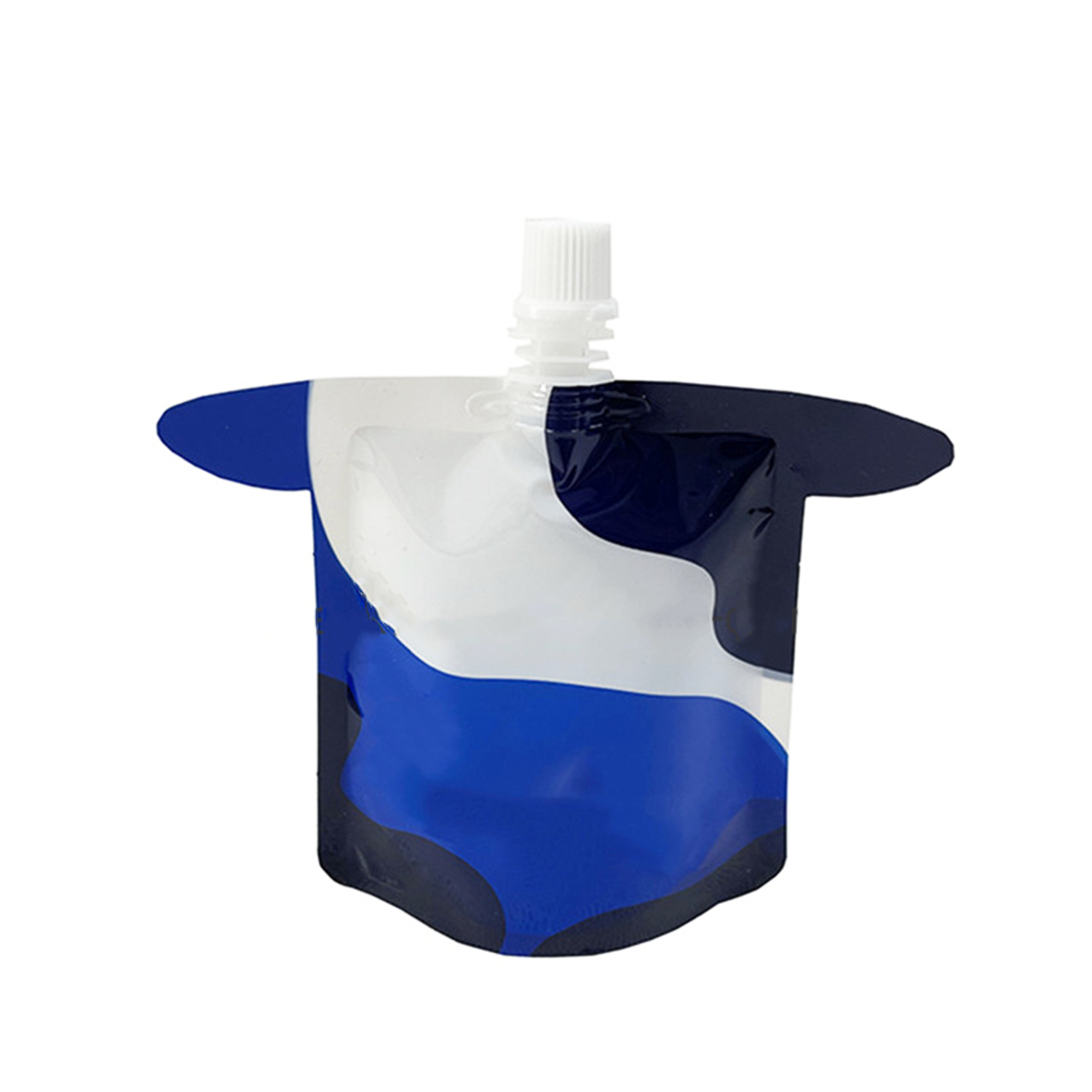

200g-800g Spout Pouch Version: For liquid and semi-liquid products, a retort pouch structure with a spout is available. Both the spout and cap are made of high-temperature resistant materials and are compatible with the same sterilization process.
Business Value
Logistics Cost Optimization: Compared to glass bottles and metal cans, retort pouches are 60%-80% lighter and have a storage volume reduction of over 70%. Packaging is supplied in flat roll or foldable pouch form, significantly improving unit transport efficiency.
Shelf Efficiency: The square pouch shape supports self-standing display, increasing shelf utilization by over 40% compared to round containers. A large printing area (front + back) provides ample space for brand information delivery.
Sustainability: Packaging waste is lightweight and small in volume. Some structures have achieved single-material recyclability solutions (such as all-PP retort pouches), meeting the brand's environmental protection requirements.
Specifications and Options
Capacity Range: 50ml-3000ml
Bag Types: Three-side seal, stand-up pouch, flat bottom pouch, spout pouch
Features: Easy-tear opening, laser perforation, resealable zipper, hanging hole
Printing: Gravure printing, up to 10 colors, supports spot colors and gradient colors
For samples, technical data, or structural suggestions for specific products, please provide information such as product type, filling temperature, and target shelf life; we will assist you in the selection process.
